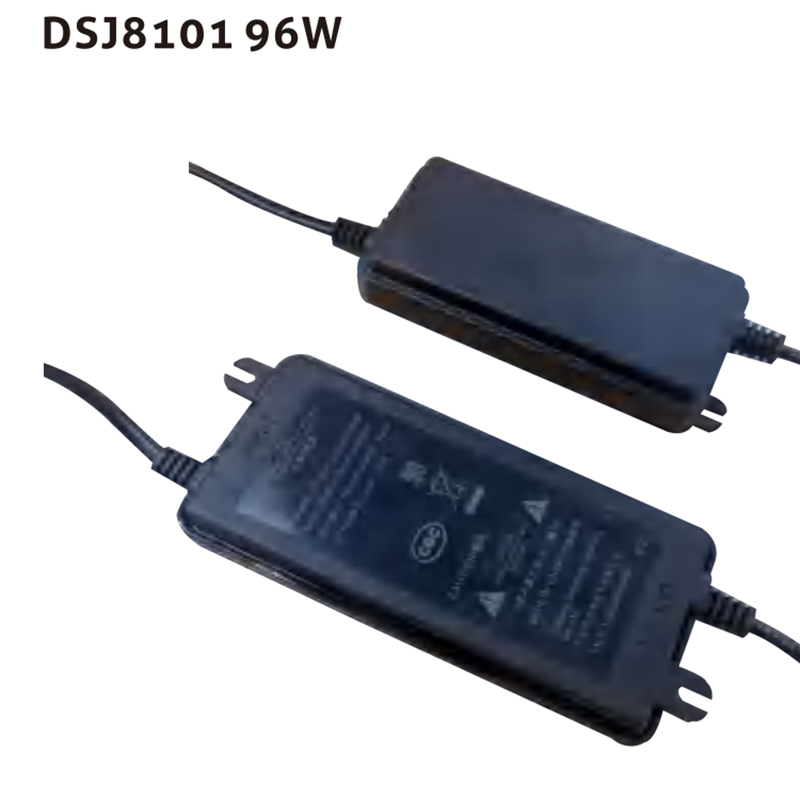

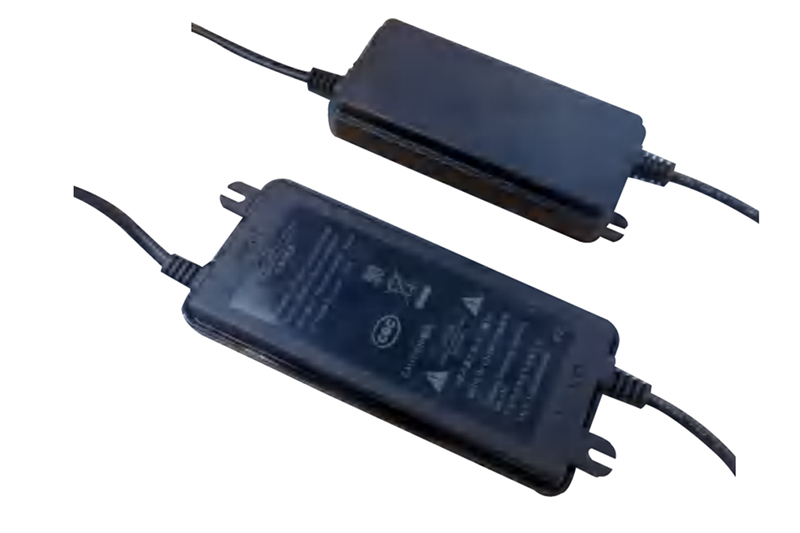

96W Series IP67 Waterproof Power Supply
Energy storage systemProduct specification
OUTPUT |
Voltage(DC) |
24V |
Current |
4A |
|
Power(Max.) |
96W |
|
Ripple&noise |
≤240mV |
|
Voltage tolerance |
±5% |
|
Standby power |
<0.21W |
|
INPUT |
Voltage Range |
100-240VAC |
Frequency Range |
50-60Hz |
|
ENVIROMENT |
operation Temp. |
0℃ to+40℃ |
Storage Temp. |
-20℃to+80℃ |
|
Operation HUM |
10%-90% |
|
SAFETY |
Safety Standards |
61558 |
Other |
MTBF |
>50,000 hours at 80%load and 25℃ |
Dimension |
162.0X67.0.2×32.0mm |
Energy storage systemSpecification
1. The range of input voltage is from 90Vac to 264Vac with a single phase.
2. Input AC Current: 2.3Amax @ 100-240Vac input & Full load
3. Inrush Current (cold start): The inrush current will not exceed 120A at 240Vac input and Max load for a cold start at 25℃
4. Average Efficiency: While input 115Vac and 230Vac, the average efficiency is more than 86.0%.The test point is at 25%, 50%, 75% and 100% of max load respectively.
5. Energy Consumption: While input 115Vac or 230Vac and the output is no load,the input power loss must be less than 0.21W.
6. Turn - on Delay Time: 3S max. @ 100 Vac to 240 Vac input & Full load
7. Hold-up Time: 5mS min. @ Full load &230Vac/50Hz input turn off at worst case
8. Capacitance Load: While input100~240Vac and capacitance load is 470uF, the adapter can turn on normally and the output is in the rated range.
9. Output Overshoot / Undershoot: 10% max. When the power on or off
10. Output Load Transient Response: the output shall not exceed 10% of the nominal output voltage, load flunctuation: from 20% to 80%, R/S: 0.5A/uS, frequency: 100Hz duration and 8mS at 80%.
11. Over Current Point Limited: 4.5-8A, The output shall hiccup when the over currents applied to the output rail, and shall be self-recovery when the fault condition is removed.
12. Short Circuit Protection: The input power shall decrease when the output rail short, the power supply shall no damage, and shall be self-recovery when the fault condition is removed.
13. Over Voltage Protection: The power supply shall protection when the output over voltage.
14. Operating Temperature and Relative Humidity: 0°C to +40°C,10%RH to 90%RH
15. Storage Temperature and Relative Humidity: -20°C to +80°C, 5%RH to 95%RH non-condensing @ Sea level shall be low 10,000 feet
16. Vibration: 10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1Hour for each of the perpendicular axes X, Y, Z
17. Waterproof Test: IP67 Reference standard, Maximum operation humidity is 98%. It is recommended to operate in conditions under RH 90%. The nozzle with an inner diameter of 12.5mm is used to make the distance between the test sample and the nozzle 2.5m ~ 3m, and the water flow rate is 100 L/min (6000 L/h).According to the shell surface area of the tested sample, it is 1 min per square meter (excluding the installation area) and at least 3 min. Vacuum test: vacuum suction pressure 3Kg/F (equivalent to water depth of 30 meters) for 3S with no air leakage detected.
18. Reliability Requirements: The power supply shall be burn-in at least 4 Hours under normal input and 80% rated load at 40℃ ± 5℃. The MTBF shall be at least 50,000hours at 25°C, Full load and nominal input condition.
19. Dielectric Strength(Hi-pot): Primary to Secondary: 4242VDC or 3000VAC / 5mAMax / 60second(3 seconds for mass production).
20. Leakage Current: 0.25mAmax. at 264Vac / 50Hz.
21. Insulation Resistance: 50MΩ min. at primary to secondary add 500Vdc test voltage.
