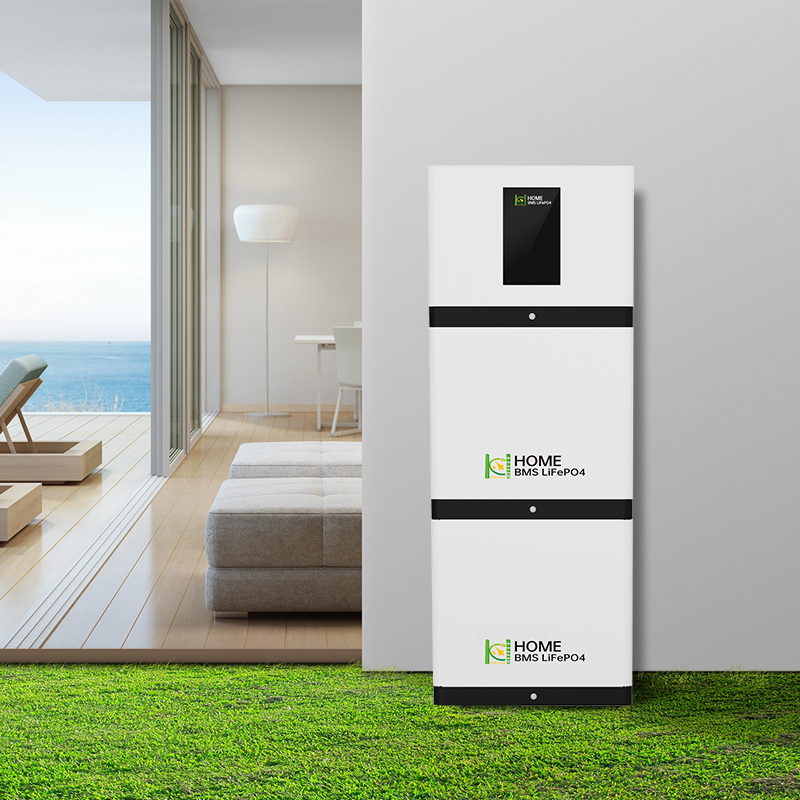

ALL-IN-ONE HOME ENERGY STORAGE 10KWH
Space-Saving Design

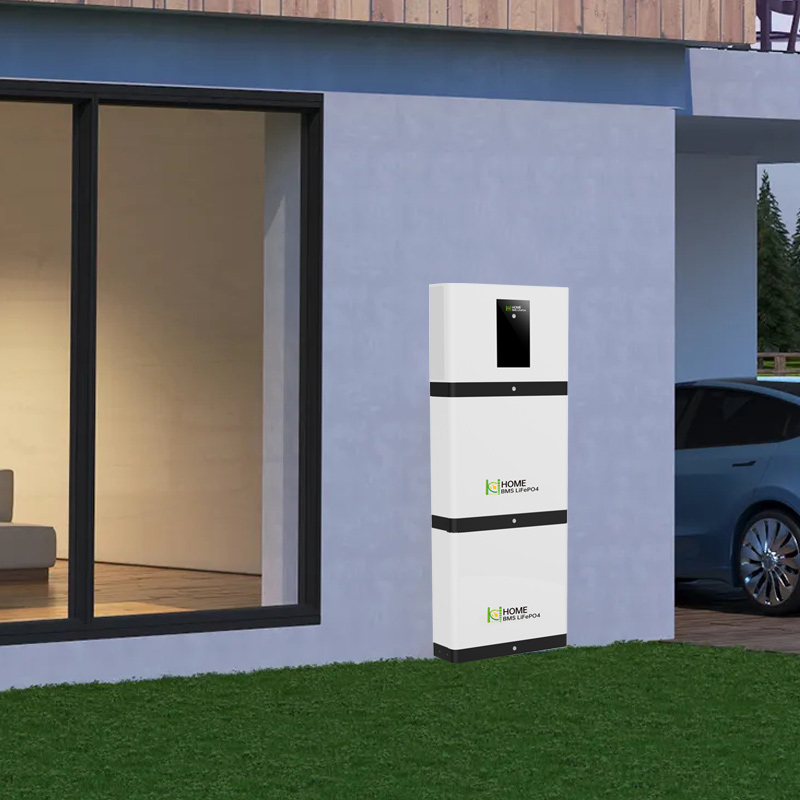

Wall-mounted batteries are compact and can be effortlessly installed on walls, saving valuable space.
Enhanced Safety
Equipped with built-in protection against overcharging, over-discharging, and short circuits for secure operation.
High Energy Density

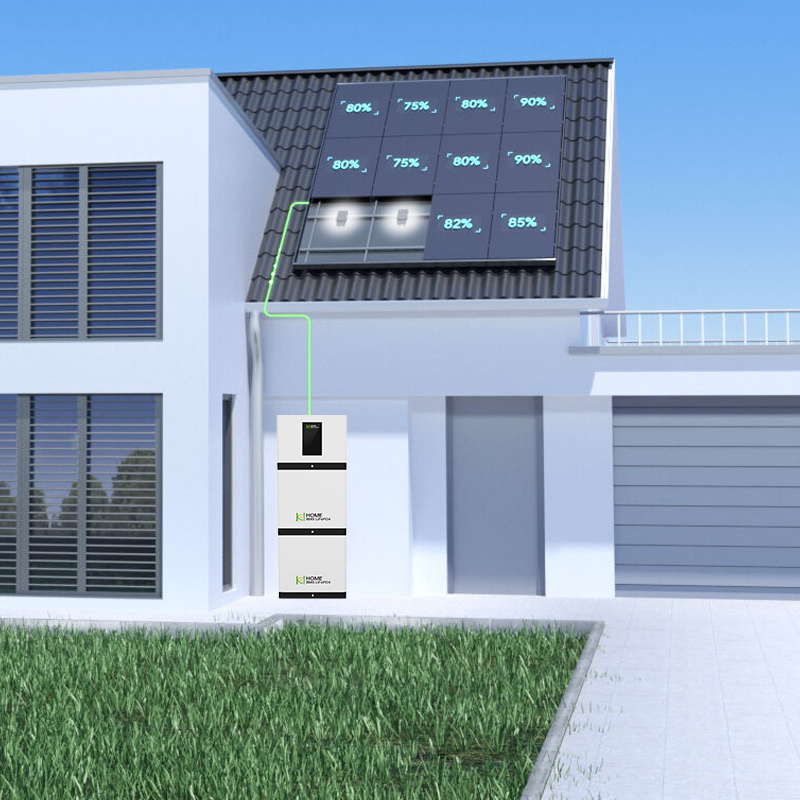

Capable of storing a large amount of energy in a small footprint, making them perfect for solar energy storage.
Optimized Efficiency
High charge and discharge efficiency, ensuring that more stored energy can be effectively utilized.
Scalable
Easily expandable by adding more batteries, allowing you to increase your energy storage capacity as needed.
Real-Time Monitoring
Monitor performance through a mobile app with Bluetooth
ELITEProduct specification
|
Battery Cell |
Specification Model |
100Ah |
|
Capacity |
100Ah |
|
|
Nominal Voltage |
3 . 2V |
|
|
Internal Resistance |
≤0 . 4mΩ |
|
|
Combination Mode |
16S2P |
|
|
Grouping Standard |
Tolerance <1% |
|
|
Single Section Internal Resistance Range <0 .2ma |
||
|
Single Section Voltage Difference≤5mV |
||
|
Charge Retention Capacity>90% |
||
|
Parameter |
Nominal Voltage(V ) |
51 .2 |
|
Nominal Capacity (Ah) |
200 |
|
|
Charging Cut-off Voltage (V ) |
58 .4 |
|
|
Discharge Cut-off Voltage (V ) |
40 |
|
|
Maximum Continuous Discharge Current (A ) |
200 |
|
|
Standard Charging Current (A ) |
50 |
|
|
Charging Temperature |
0℃ ~45℃ |
|
|
Discharge Temperature |
-20℃ ~65℃ |
|
|
Battery Size |
1580* 180*600mm |
|
|
Battery Weight |
125Kg |
|
|
Storage Temperature Range |
-20℃ ~55℃ |
|
|
Storage Humidity( RH) |
5%~95%（ No Condensation） |
|
|
Management System |
Single Overvoltage Protection Value |
3 .65V |
|
Overpressure Release Value |
3 .55V |
|
|
Single Undervoltage Protection Value |
2 .5V |
|
|
Undervoltage Release Value |
2 .7V |
|
|
Overcurrent Protection Value |
210A |
|
|
Inverter |
Model |
5048MH |
|
Input |
Input Source |
L+N+PE |
|
Rated Input Voltage |
220/230/240VAC |
|
|
Voltage Range |
154-264VAC±3V(APL Mode ) 185-264VAC±3V( UPS Mode ) |
|
|
Frequency |
50Hz/60Hz(Automatic Adaptation) |
|
|
Output |
Rated Capacity |
5000W |
|
Output Voltage |
220/230/240VAC±5% |
|
|
Output Frequency |
50/60Hz±0 . 1 % |
|
|
Wave Form |
Pure Dazzle |
|
|
Transmission Time |
Computer (UPS Mode ) 10ms , Home device (APL Mode )20ms |
|
|
Peak Power |
10000VA |
|
|
Overload Capacity |
Battery Mode: 21s@ 105%~ 150% Load 11s@ 150%~200% Load 400ms@ >200% Load |
|
|
Peak Efficiency (Battery Mode ) |
>94% |
|
|
Battery |
Battery Voltage |
48Vdc |
|
Constant Charge Voltage (Adjustable) |
56 .4Vdc |
|
|
Floating Charge Voltage (Adjustable) |
54Vdc |
|
|
Charger |
PV Charging Mode |
MPPT |
|
PV Input Maximum Power |
5500W |
|
|
MPPT Tracking Range |
120~500Vdc |
|
|
Optimum Voltage |
300~400V |
|
|
PV Input Voltage Maximum |
500vdc |
|
|
PV Charging Current Maximum |
80A |
|
|
AC Charging Current Maximum |
80A |
|
|
Charging Current Maximum |
80A |
|
|
Display |
Liquid Crystal Display |
Display running mode/ load/input/output , etc |
|
Environment |
Operating Temperature |
0~40℃ |
|
Humid ness |
20%~95%(Non-Condensing) |
|
|
Storage Temperature |
-15~60℃ |
|
|
Altitude |
No more than 1 ,000 meters above sea level , more than 1 ,000 meters derated , Maximum 4000 meters , refer to IEC62040 |
|
|
Noise |
≤50 dB |
