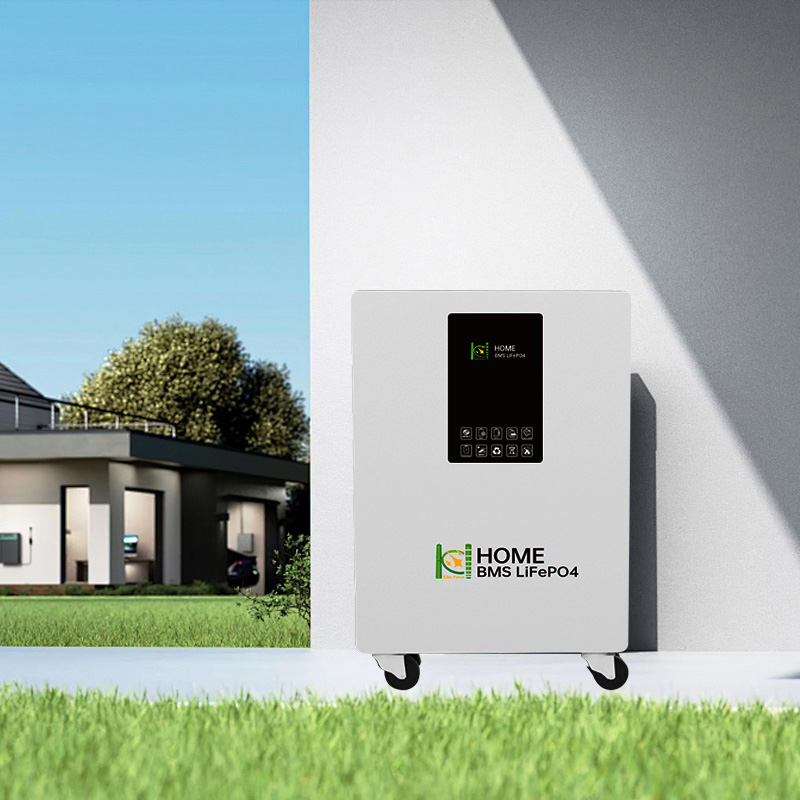

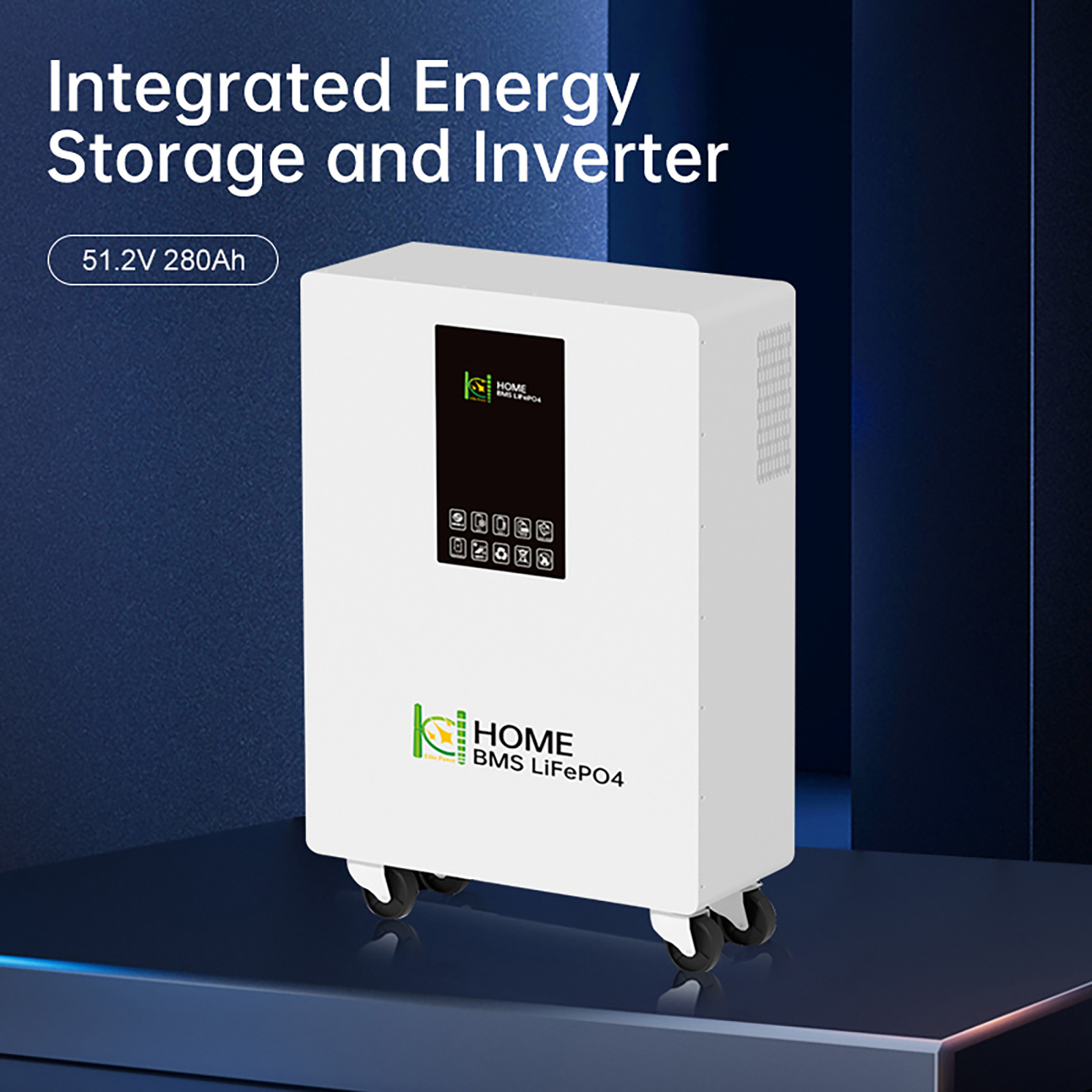

All-In-One Home Energy Storage 15kwh
All-in-one design
A comprehensive solution that integrates multiple features into a single unit, requiring no additional configuration for operation.
No risk of electrical exposure
Safety-focused design that effectively eliminates electrical hazards, ensuring user protection.
Plug-and-play functionality
Quick and easy access with no complex setup, allowing for immediate use right out of the box.
Efficient photovoltaic input
Devices with a 3-6kW capacity feature a 9kW photovoltaic input, optimizing energy utilization.
Simple on-site installation
Streamlined installation process with a low technical barrier, enabling rapid setup without the need for specialized personnel.
Multi-function status indicator
Provides real-time updates on the status of photovoltaic, battery, grid EPS, networking, and overall system operation.
ELITEProduct specification
|
Battery Cell |
Specification Model |
280Ah |
|
Capacity |
280Ah |
|
|
Nominal Voltage |
3 . 2V |
|
|
Internal Resistance |
≤0 . 4mΩ |
|
|
Combination Mode |
16S1P |
|
|
Grouping Standard |
Tolerance <1% |
|
|
Single Section Internal Resistance Range <0 .2ma |
||
|
Single Section Voltage Difference≤5mV |
||
|
Charge Retention Capacity>90% |
||
|
Parameter |
Nominal Voltage(V ) |
51 .2 |
|
Nominal Capacity (Ah) |
280 |
|
|
Charging Cut-off Voltage (V ) |
58 .4 |
|
|
Discharge Cut-off Voltage (V ) |
40 |
|
|
Maximum Continuous Discharge Current (A ) |
200 |
|
|
Standard Charging Current (A ) |
50 |
|
|
Charging Temperature |
0℃ ~45℃ |
|
|
Discharge Temperature |
-20℃ ~65℃ |
|
|
Battery Size |
645*275*840mm |
|
|
Battery Weight |
135Kg |
|
|
Storage Temperature Range |
-20℃ ~55℃ |
|
|
Storage Humidity( RH) |
5%~95%（ No Condensation） |
|
|
Management System |
Single Overvoltage Protection Value |
3 .65V |
|
Overpressure Release Value |
3 .55V |
|
|
Single Undervoltage Protection Value |
2 .5V |
|
|
Undervoltage Release Value |
2 .7V |
|
|
Overcurrent Protection Value |
210A |
|
|
Inverter |
Model |
5048MH |
|
Input |
Input Source |
L+N+PE |
|
Rated Input Voltage |
220/230/240VAC |
|
|
Voltage Range |
154-264VAC±3V(APL Mode ) 185-264VAC±3V( UPS Mode ) |
|
|
Frequency |
50Hz/60Hz(Automatic Adaptation) |
|
|
Output |
Rated Capacity |
5000W |
|
Output Voltage |
220/230/240VAC±5% |
|
|
Output Frequency |
50/60Hz±0 . 1 % |
|
|
Wave Form |
Pure Dazzle |
|
|
Transmission Time |
Computer (UPS mode ) 10ms , Home device (APL mode )20ms |
|
|
Peak Power |
10000VA |
|
|
Overload Capacity |
Battery Mode: 21s@ 105%~ 150% Load 11s@ 150%~200% Load 400ms@ >200% Load |
|
|
Peak Efficiency (Battery Mode ) |
>94% |
|
|
Battery |
Battery Voltage |
48Vdc |
|
Constant Charge Voltage (Adjustable) |
56 .4Vdc |
|
|
Floating Charge Voltage (Adjustable) |
54Vdc |
|
|
Charger |
PV Charging Mode |
MPPT |
|
PV Input Maximum Power |
5500W |
|
|
MPPT Tracking Range |
120~500Vdc |
|
|
Optimum Voltage |
300~400V |
|
|
PV Input Voltage Maximum |
500vdc |
|
|
PV Charging Current Maximum |
80A |
|
|
AC Charging Current Maximum |
80A |
|
|
Charging Current Maximum |
80A |
|
|
Display |
Liquid Crystal Display |
Display running mode/ load/input/output , etc |
|
Environment |
Operating Temperature |
0~40℃ |
|
Humid ness |
20%~95%(Non-Condensing) |
|
|
Storage Temperature |
-15~60℃ |
|
|
Altitude |
No more than 1 ,000 meters above sea level , more than 1 ,000 meters derated , Maximum 4000 meters , refer to IEC62040 |
|
|
Noise |
≤50 dB |
