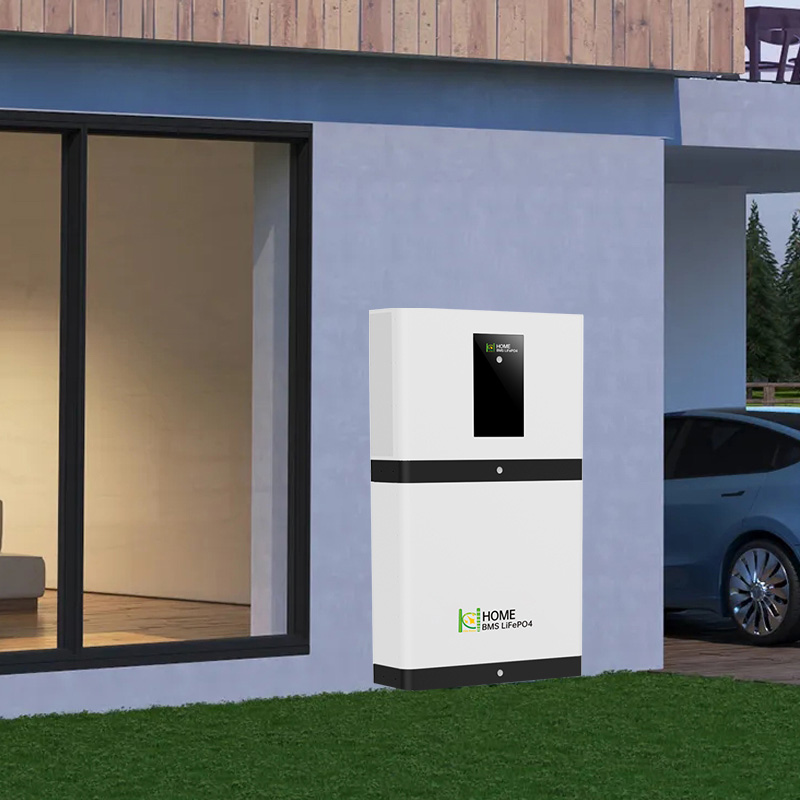

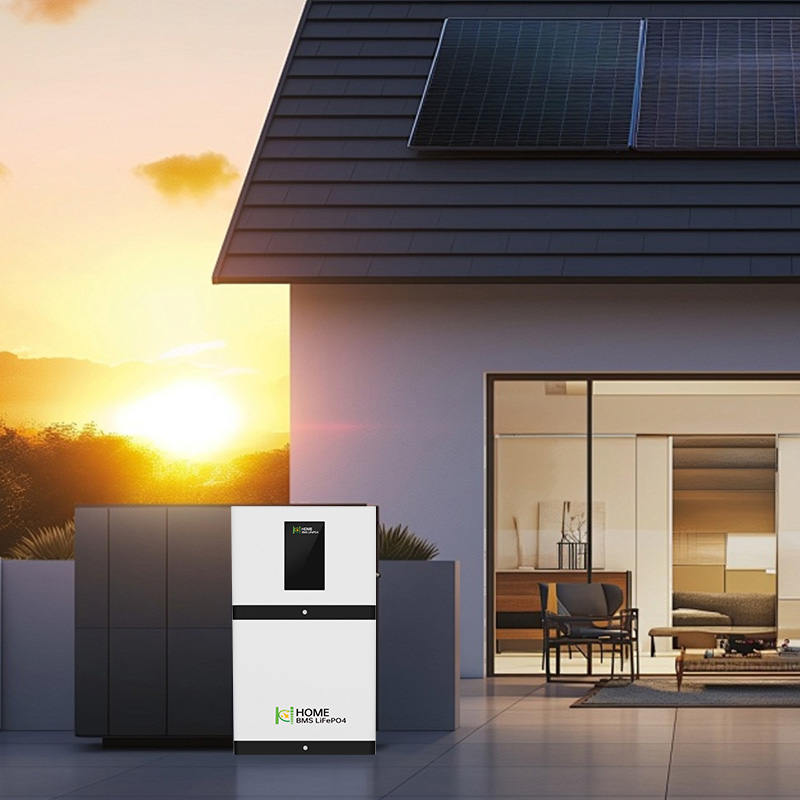

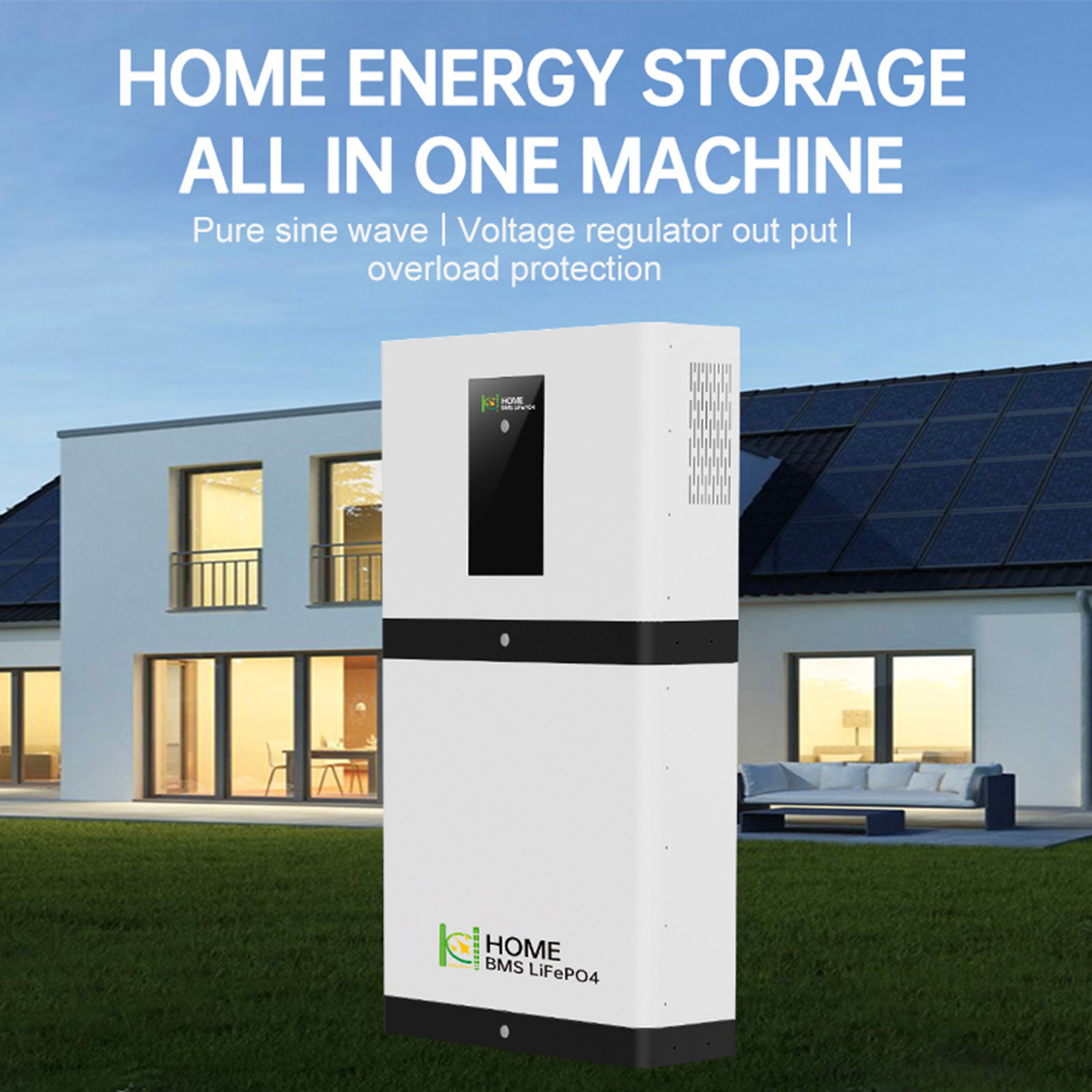

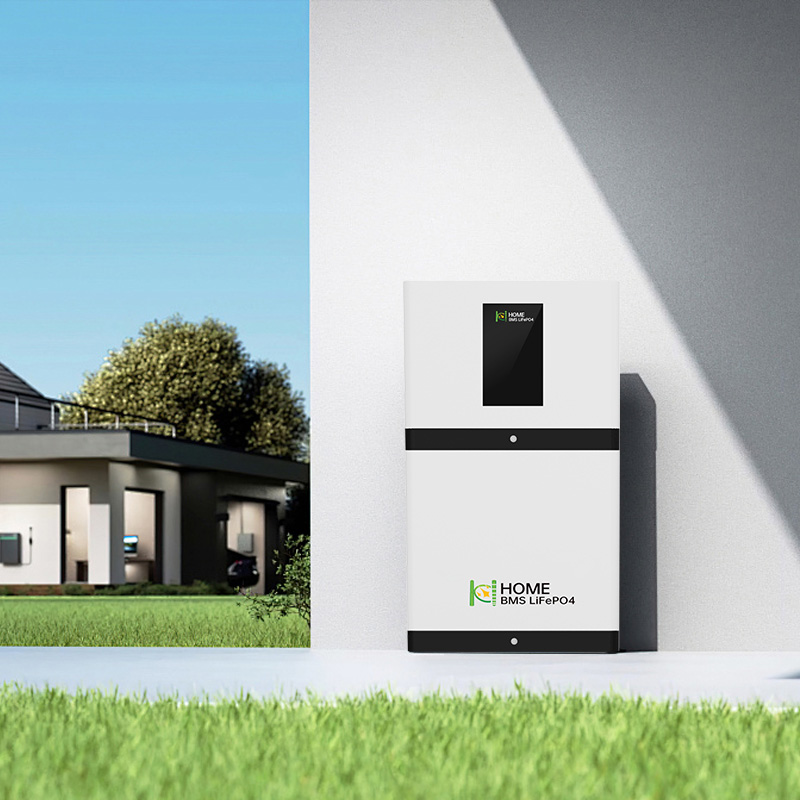

ALL-IN-ONE HOME ENERGY STORAGE 5KWH
Grade A LiFePO4 Cells
Longer cycle life and enhanced safety.
Over 6000 Cycles
Maintains 80% DOD for long-lasting performance.
Built-in Air Cooling System
Effectively controls the internal temperature of the powerwall battery.
Exclusive Patented Interface Design
Unique and secure connection.
Multiple Communication Protocols
Supports RS232, RS485, and CAN for versatile integration.
Thermal Shock and Puncture Resistant
Withstands extreme conditions without fire or explosion.

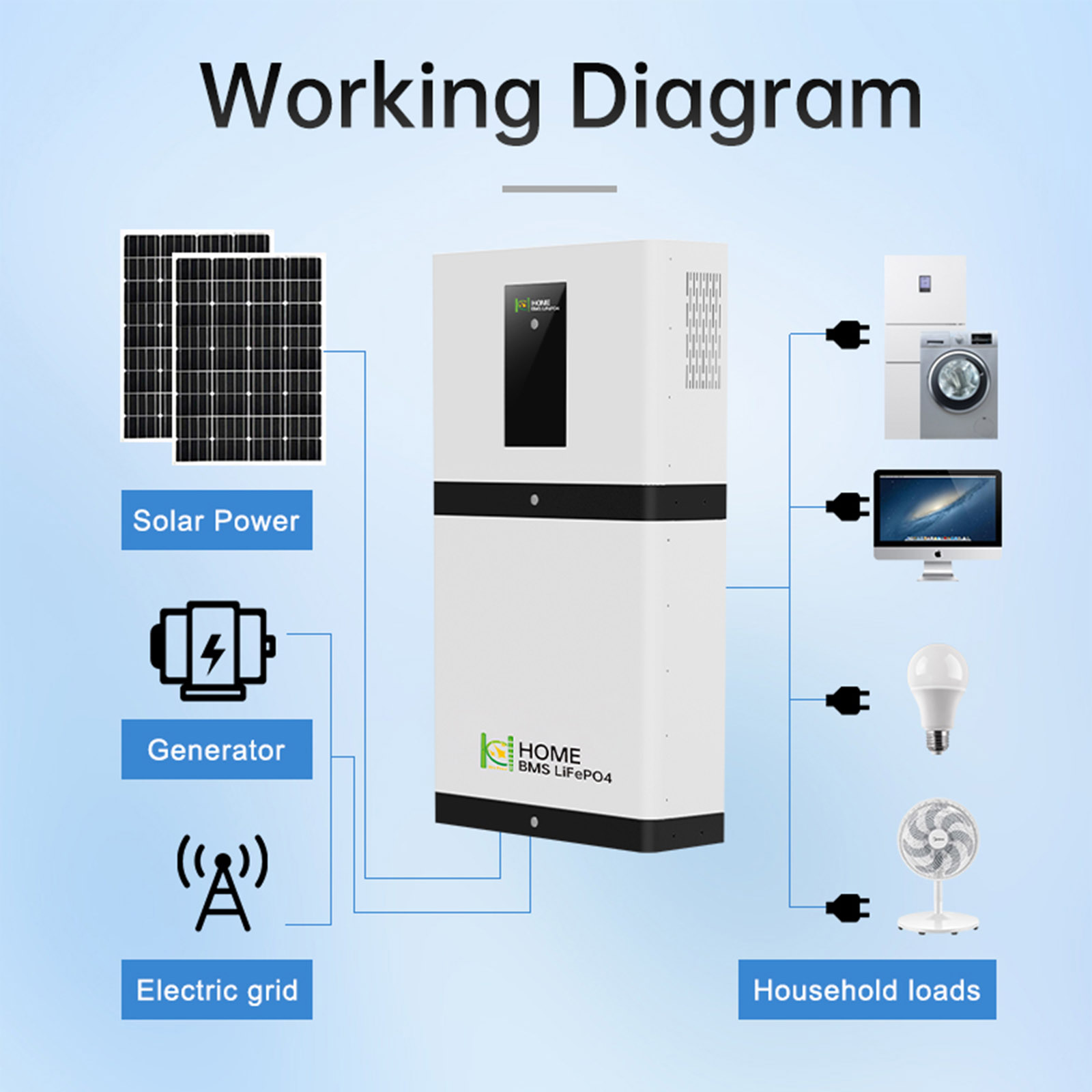

Wide Inverter Compatibility
Works seamlessly with leading global inverter brands.
Real-time LCD Monitoring
Provides clear, live updates on battery status.
App Remote Control
Conveniently manage and monitor the system from anywhere.
Built-in Inverter
Simplifies installation and reduces equipment costs by integrating both battery and inverter in one compact unit.
ELITEProduct specification
|
Battery Cell |
Specification Model |
100Ah |
|
Capacity |
100Ah |
|
|
Nominal Voltage |
3 . 2V |
|
|
Internal Resistance |
≤0 . 4mΩ |
|
|
Combination Mode |
16S1P |
|
|
Grouping Standard |
Tolerance <1% |
|
|
Single Section Internal Resistance Range <0 .2ma |
||
|
Single Section Voltage Difference≤5mV |
||
|
Charge Retention Capacity>90% |
||
|
Parameter |
Nominal Voltage(V ) |
51 .2 |
|
Nominal Capacity (Ah) |
100 |
|
|
Charging Cut-off Voltage (V ) |
58 .4 |
|
|
Discharge Cut-off Voltage (V ) |
40 |
|
|
Maximum Continuous Discharge Current (A ) |
100 |
|
|
Standard Charging Current (A ) |
25 |
|
|
Charging Temperature |
0℃ ~45℃ |
|
|
Discharge Temperature |
-20℃ ~65℃ |
|
|
Battery Size |
1020* 180*600mm |
|
|
Battery Weight |
78Kg |
|
|
Storage Temperature Range |
-20℃ ~55℃ |
|
|
Storage Humidity( RH) |
5%~95%（ No Condensation） |
|
|
Management System |
Single Overvoltage Protection Value |
3 .65V |
|
Overpressure Release Value |
3 .55V |
|
|
Single Undervoltage Protection Value |
2 .5V |
|
|
Undervoltage Release Value |
2 .7V |
|
|
Overcurrent Protection Value |
1 10A |
|
|
Inverter |
Model |
5048MH |
|
Input |
Input Source |
L+N+PE |
|
Rated Input Voltage |
220/230/240VAC |
|
|
Voltage Range |
154-264VAC±3V(APL Mode ) 185-264VAC±3V( UPS Mode ) |
|
|
Frequency |
50Hz/60Hz(Automatic Adaptation) |
|
|
Output |
Rated Capacity |
5000W |
|
Output Voltage |
220/230/240VAC±5% |
|
|
Output Frequency |
50/60Hz±0 . 1 % |
|
|
Wave Form |
Pure Dazzle |
|
|
Transmission Time |
Computer (UPS Mode ) 10ms , Home device (APL Mode )20ms |
|
|
Peak Power |
10000VA |
|
|
Overload Capacity |
Battery Mode: 21s@ 105%~ 150% Load 11s@ 150%~200% Load 400ms@ >200% Load |
|
|
Peak Efficiency (Battery Mode ) |
>94% |
|
|
Battery |
Battery Voltage |
48Vdc |
|
Constant Charge Voltage (Adjustable) |
56 .4Vdc |
|
|
Floating Charge Voltage (Adjustable) |
54Vdc |
|
|
Charger |
PV Charging Mode |
MPPT |
|
PV Input Maximum Power |
5500W |
|
|
MPPT Tracking Range |
120~500Vdc |
|
|
Optimum Voltage |
300~400V |
|
|
PV Input Voltage Maximum |
500vdc |
|
|
PV Charging Current Maximum |
80A |
|
|
AC Charging Current Maximum |
80A |
|
|
Charging Current Maximum |
80A |
|
|
Display |
Liquid Crystal Display |
Display running mode/ load/input/output , etc |
|
Environment |
Operating Temperature |
0~40℃ |
|
Humid ness |
20%~95%(Non-Condensing) |
|
|
Storage Temperature |
-15~60℃ |
|
|
Altitude |
No more than 1 ,000 meters above sea level , more than 1 ,000 meters derated , Maximum 4000 meters , refer to IEC62040 |
|
|
Noise |
≤50 dB |
