EU STANDARD STACKABLE HOME ENERGY STORAGE 20.48KWH

Our Home Energy Storage products are widely used by installers, agents, distributors, factories, and traders.

Maximize your home’s energy efficiency with Elite Power advanced 20.48kWh stackable energy storage system. Designed for modern homes, this compact and scalable solution ensures you always have reliable, sustainable power, whether for backup or self-consumption.

product description

product details

ELITEProduct advantage

Capacity

20.48kWh, providing reliable power storage for daily energy needs.

01 product details

Stackable Design

Flexible and space-saving, allowing multiple units to be stacked for higher capacity.

02 product details

European Standard Compliance

Meets high-quality safety standards, ensuring safe and efficient energy storage.

03 product details

ETL, CB, and CE Certified

ETL listed for safety compliance in North America, CB certified for global standards, and CE marked for European safety, ensuring the system meets rigorous international safety regulations.

04 product details

Long Life Cycle

Robust and durable with a long service life for years of dependable performance.

05 product details

Efficient Energy Management

Helps reduce energy bills by storing excess solar power for later use.

06 product details

Wireless Connectivity

Built-in wireless communication for remote monitoring and management of your energy system.

06 product details

Port Identification for Simple Installation

Smart port identification feature ensures easy and error-free setup with quick connection to your solar or energy system.

06 product details

Easy Installation & Integration

Simple setup with seamless integration into existing solar or energy systems, making it a hassle-free addition to your home.

06 product details

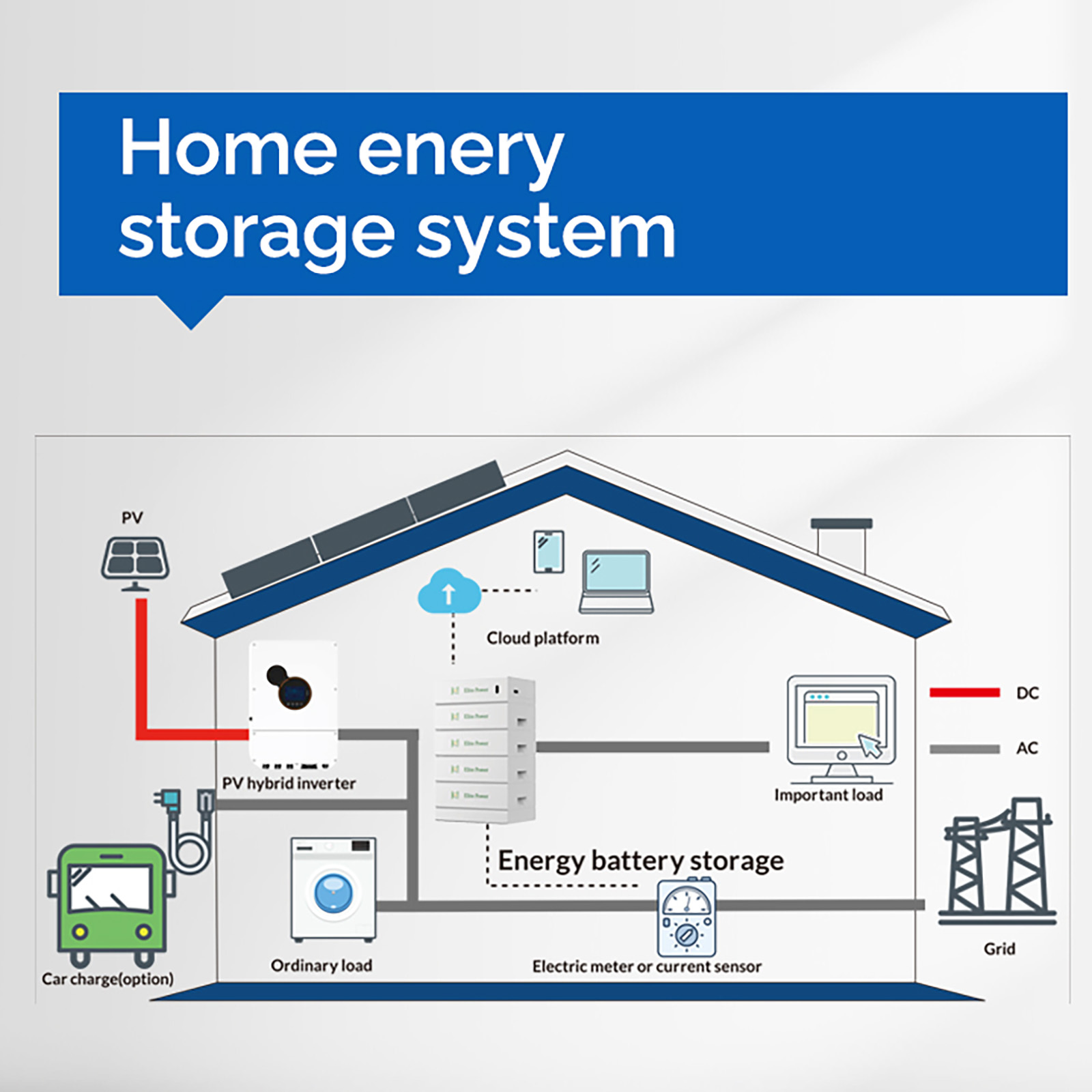

Homes with solar energy systems
Off-grid applications
Backup power in case of outages
Energy self-sufficiency

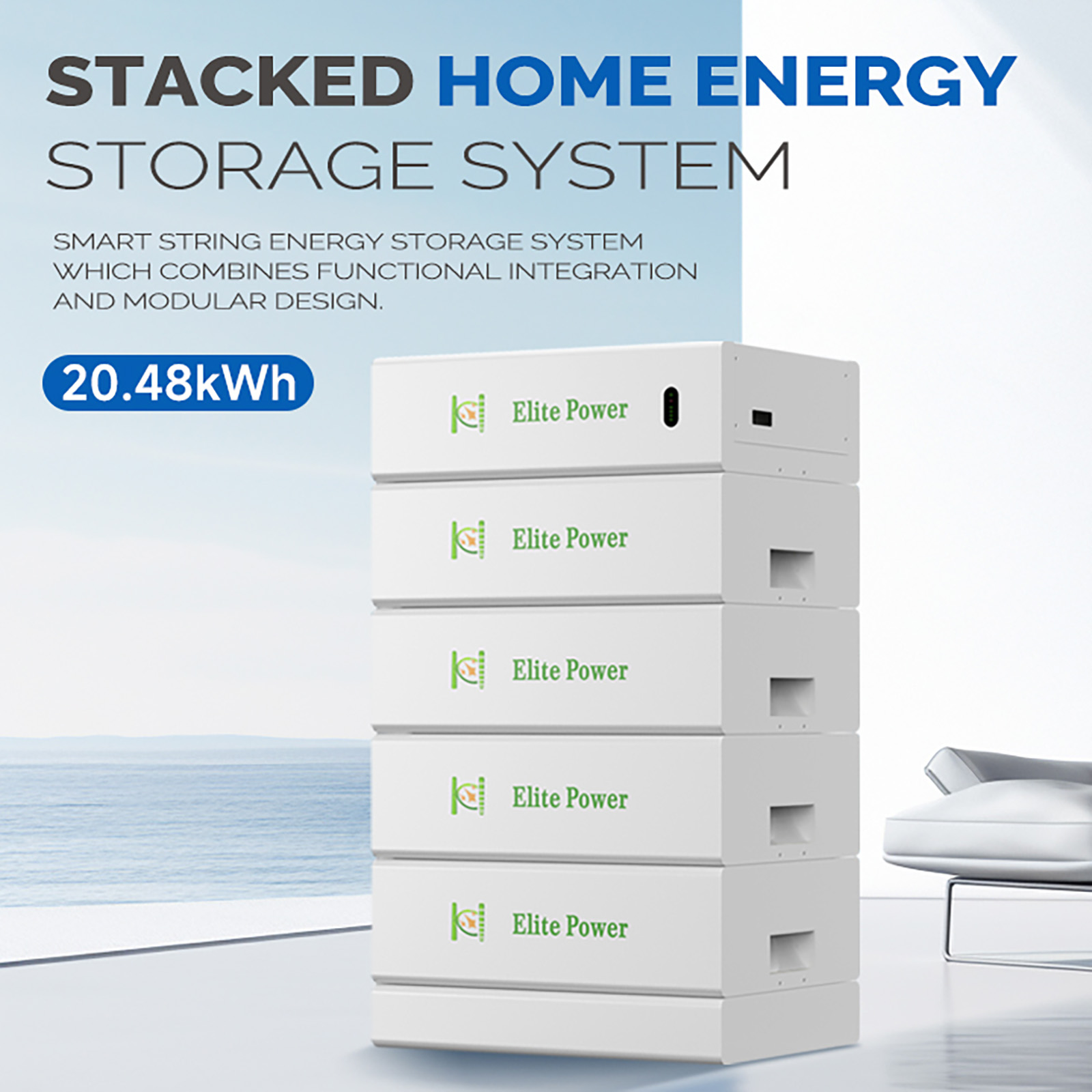

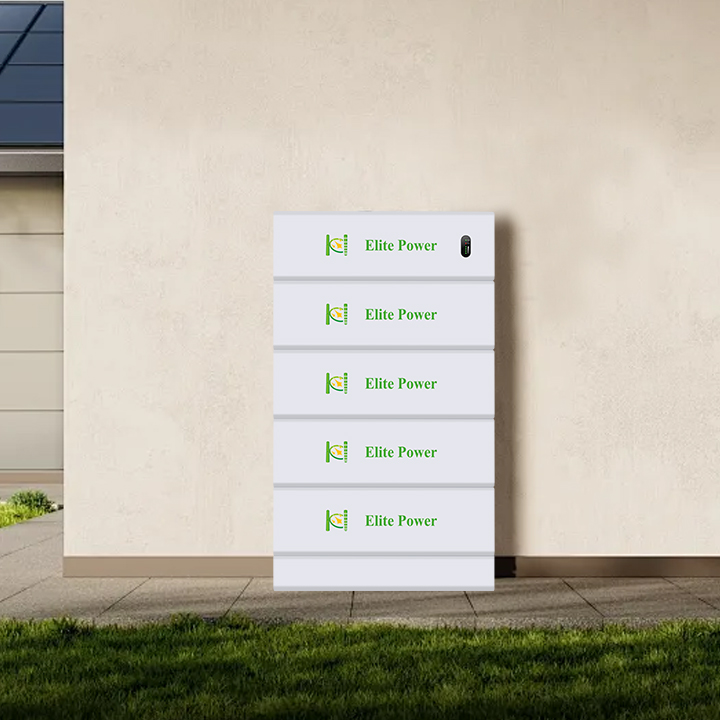

The Elite Power 20.48kWh product consists of 4 independent battery units, integrated display output units, and a bottom mounting base.

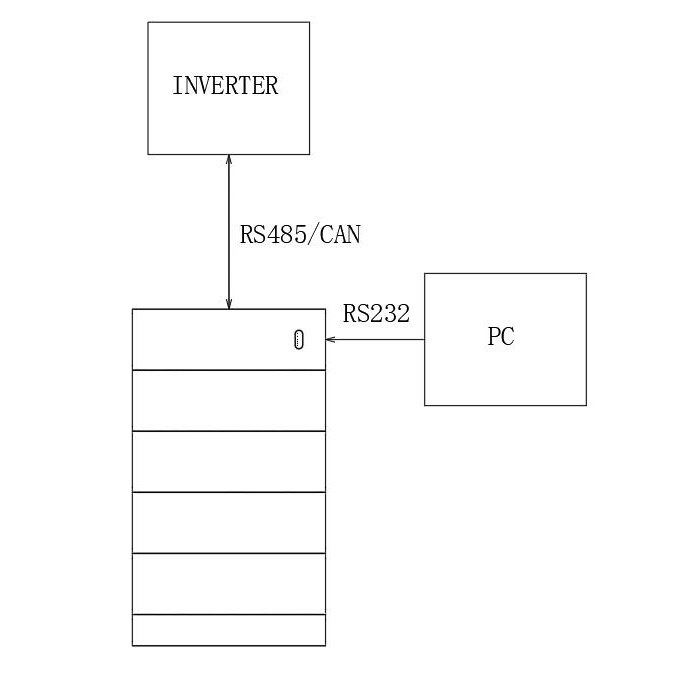

EU STANDARD STACKABLE HOME ENERGY STORAGE 20

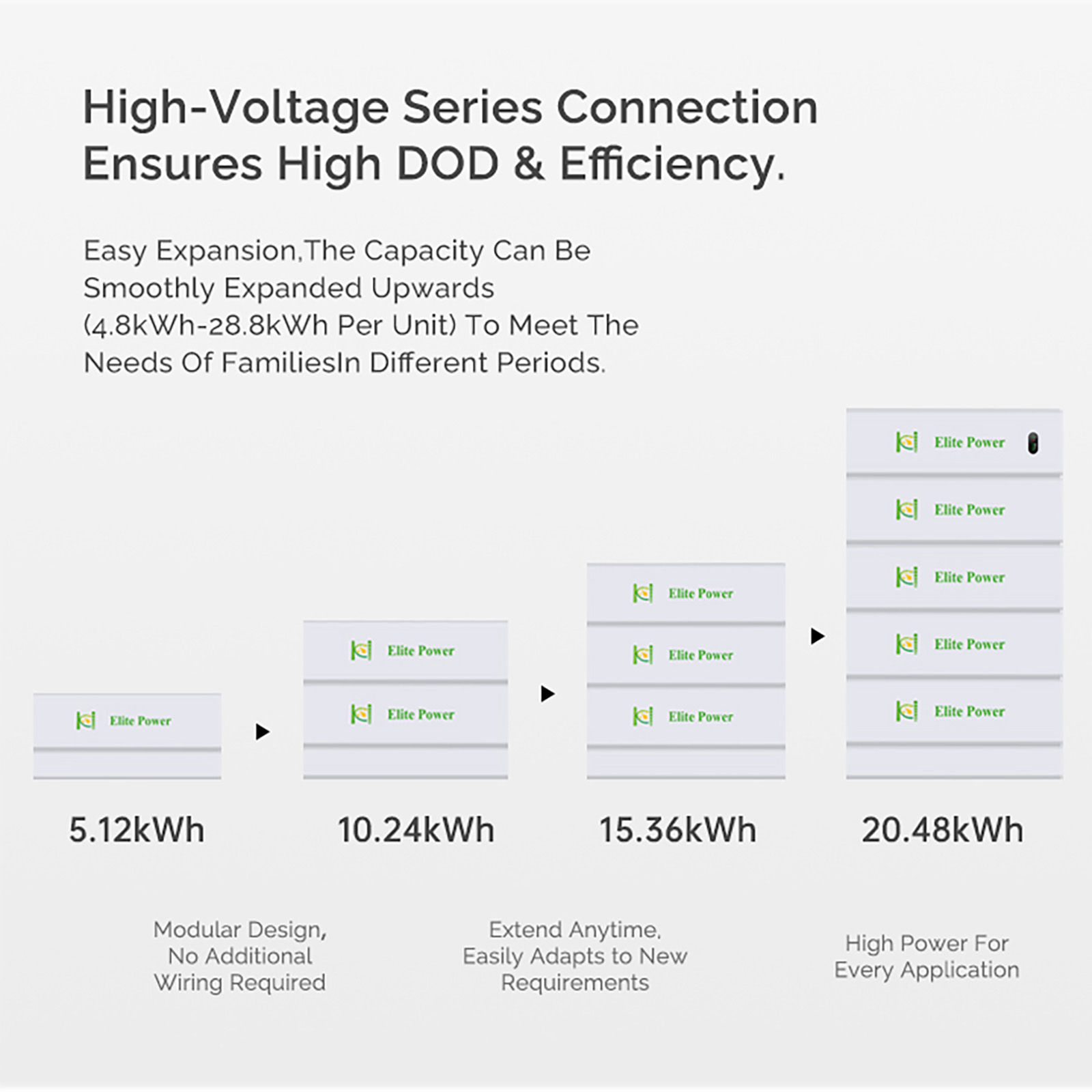

Each battery module can be selected from 1-4 modules for parallel stacking, and each battery module has independent protection sampling function.

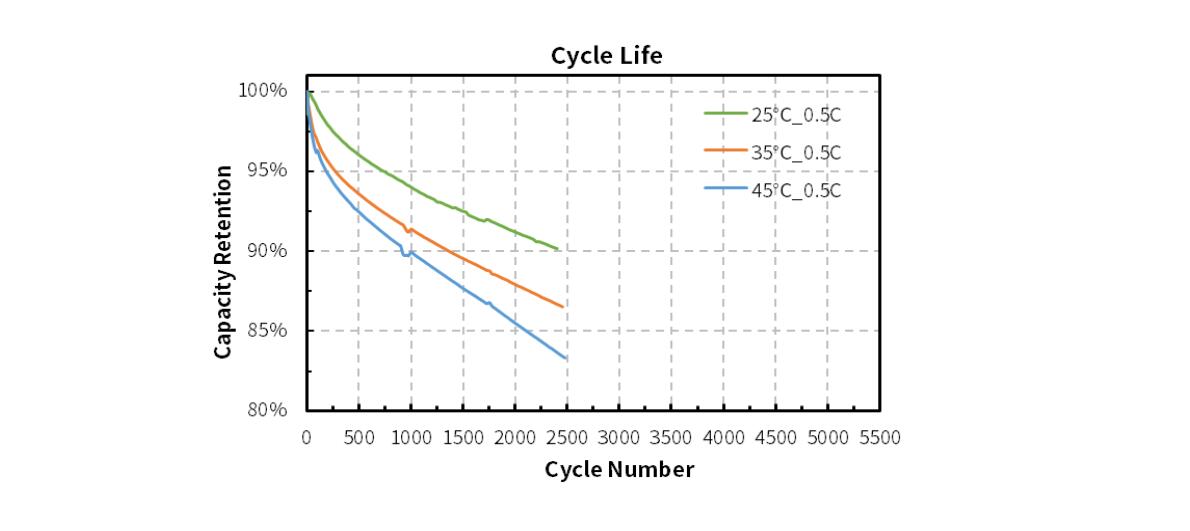

Cycles of the cell

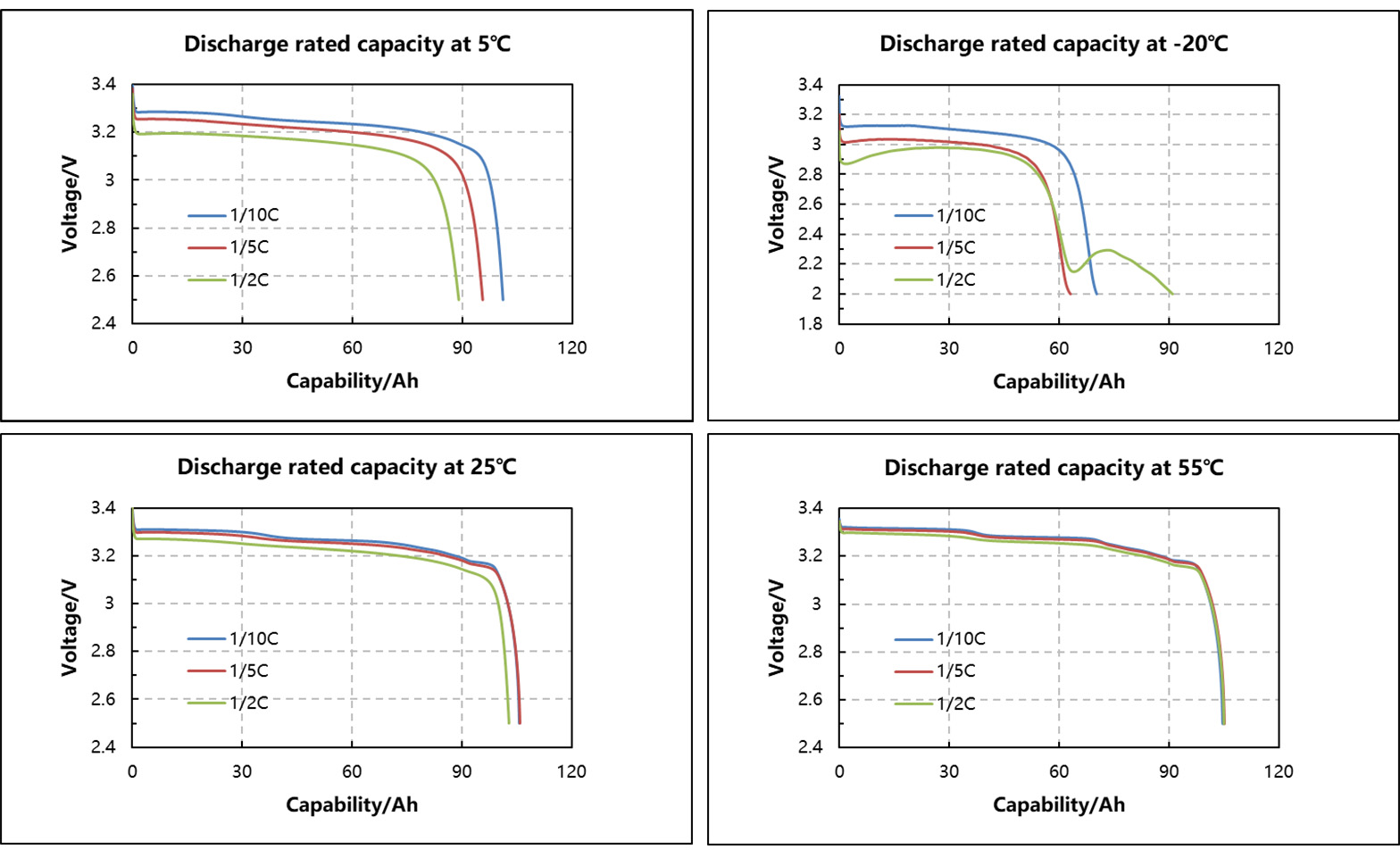

The discharge curve of the cell at different magnification and temperature

ELITEProduct specification

Item		General Parameter	General Parameter	General Parameter	General Parameter
Combination method		16S1P	16S2P	16S3P	16S4P
Rated Capacity	Typical	100Ah	200Ah	300Ah	400Ah
	Minimum	98Ah	196Ah	294Ah	392Ah
Nominal Voltage		51.2V
Factory SOC		30~60%
Voltage at end of		44.8V
Charging mode		MAX 58.4V
Rated reserved energy		5.12KWh	10.24KWh	15.36KWh	20.48KWh
Standard charge current		20A	40A	60A	80A
Limiting current		20A	40A	60A	80A
Standard discharge		20A	40A	60A	80A
Maximum Charge Current		90A	180A	250A	250A
Maximum Discharge Current		90A	180A	250A	250A
Operation Temperature Range		Charge: 0~50℃ Discharge: -20~55℃
Storage Temperature Range		Less than 12 months : -10~35℃ less than 3 months: -10~45℃ Less than 7 day : -20~65℃
Dimensions		L620W460H491mm	L620W460H686.5mm	L620W460H882mm	L620W460H1077.5 mm
Weight		92Kg	144Kg	196Kg	248KG
Communication mode		RS485/CAN
