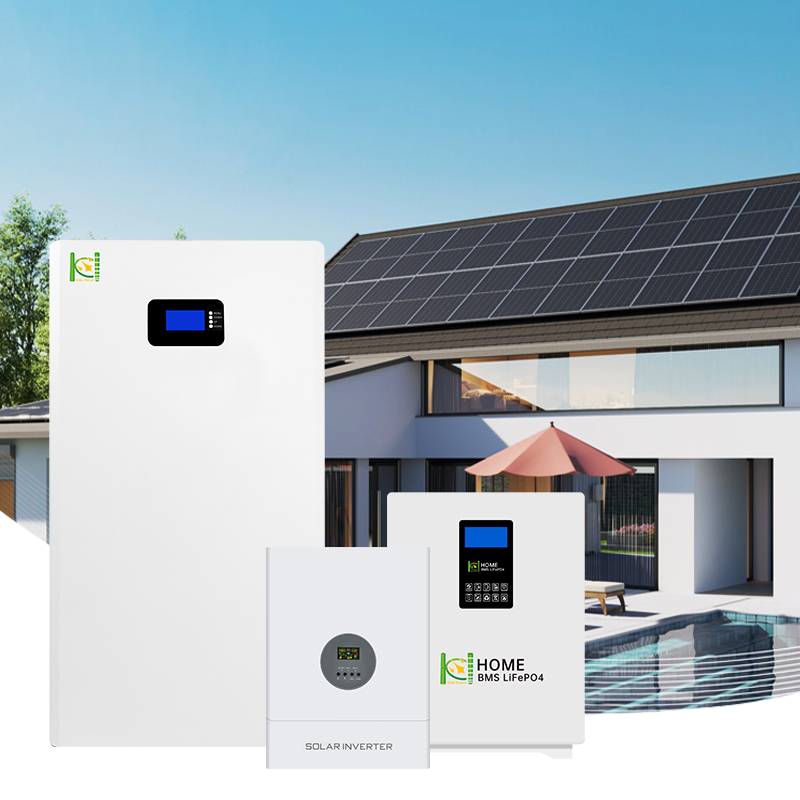

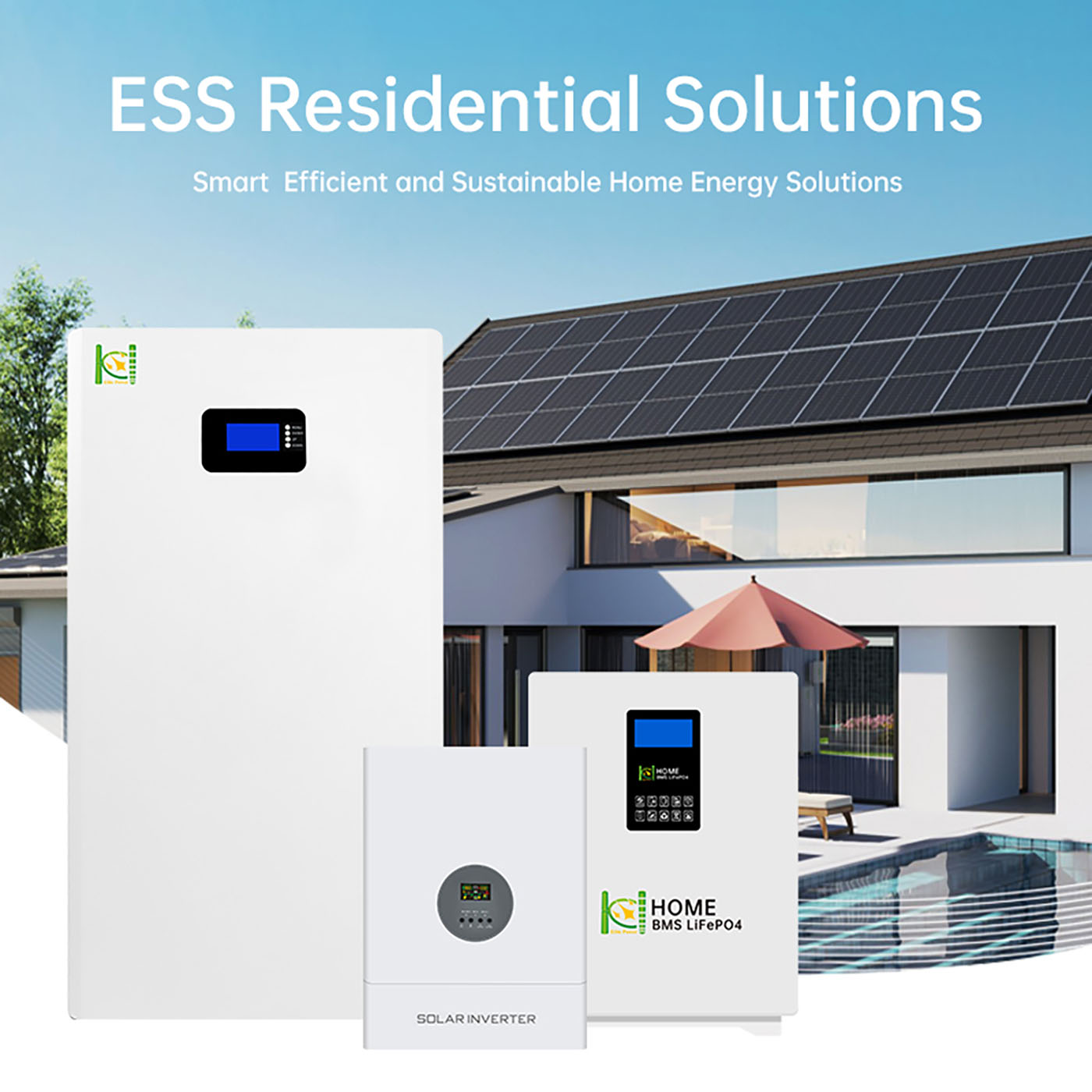

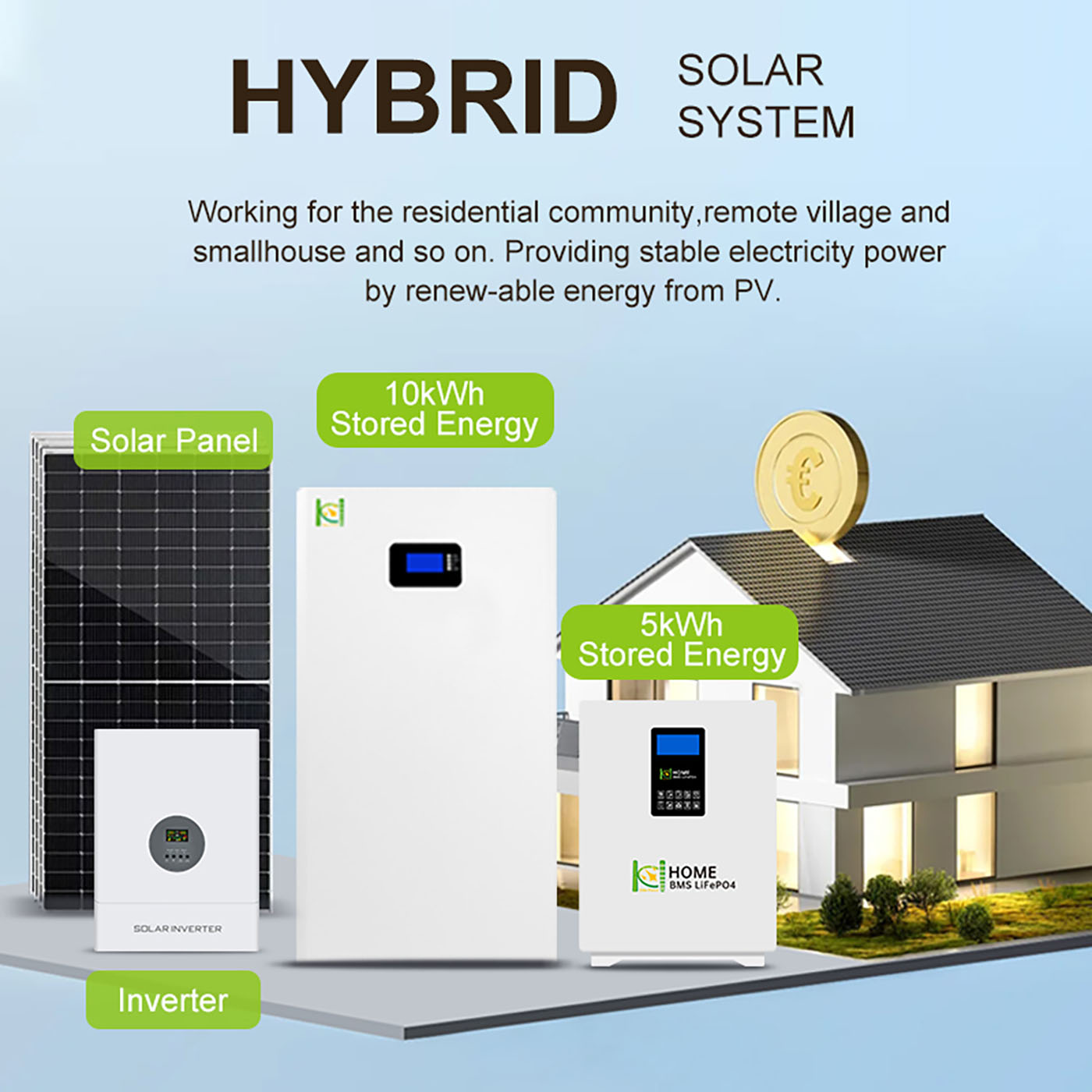

HOME ENERGY STORAGE 5KWH & 10KWH
Premium A+ Cells
Equipped with 16 high-performance cells that are securely fastened, serviceable, and replaceable.
Long-lasting Capacity
Retains 80% State of Charge (SOC) after 3,000 cycles (80% Depth of Discharge at 0.5C rate, 25°C). Typical lifespan ranges from 4,000 to 8,000 cycles.
Extended Lifespan
Designed for a typical 20-year lifespan and backed by a 5-year warranty.
Impressive Capacity
Provides 48 volts (51.2V nominal) at 184Ah, delivering 9.42 kWh of energy.
Intelligent Battery Management
Built-in BMS ensures automated, maintenance-free operation with advanced protection features.
Temperature Protection
Equipped with 5 temperature sensors to safeguard against extreme temperatures.
Pre-Charge Circuit
Prevents potential BMS damage during operation.
Robust Construction
Includes 16 flame-retardant cell holders for stable structural support, enhanced heat dissipation, and improved cell performance.
Modular Design
Detachable and replaceable components, including the cover, BMS, cells, and holders, ensure easy servicing.
Advanced Communication
RS485 and CAN Bus protocols are built-in and upgradable, making the battery compatible with most inverters. (Ensure proper communication cables are used.)
Flexible Installation

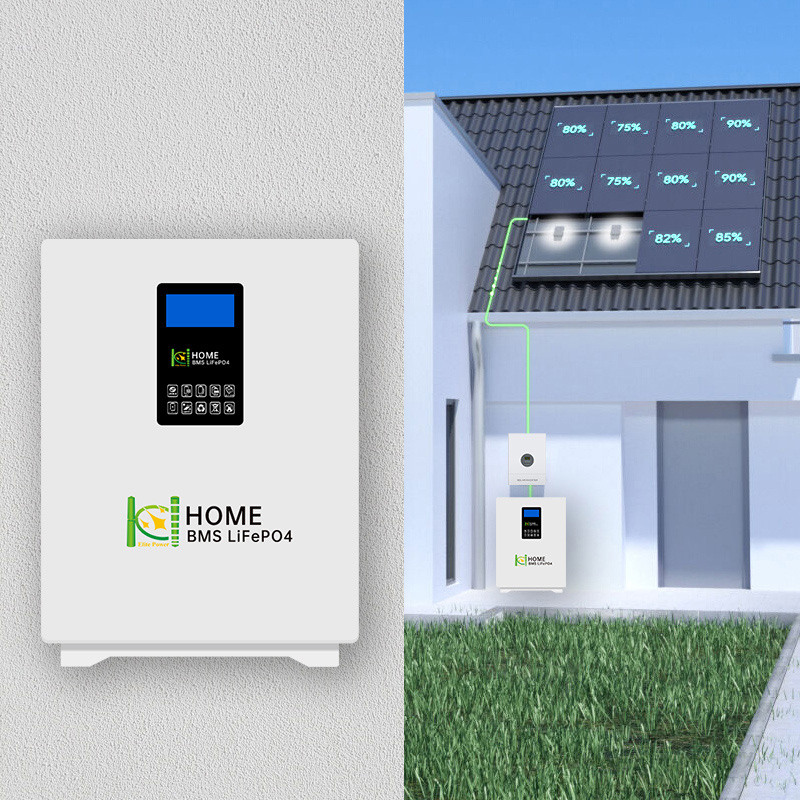

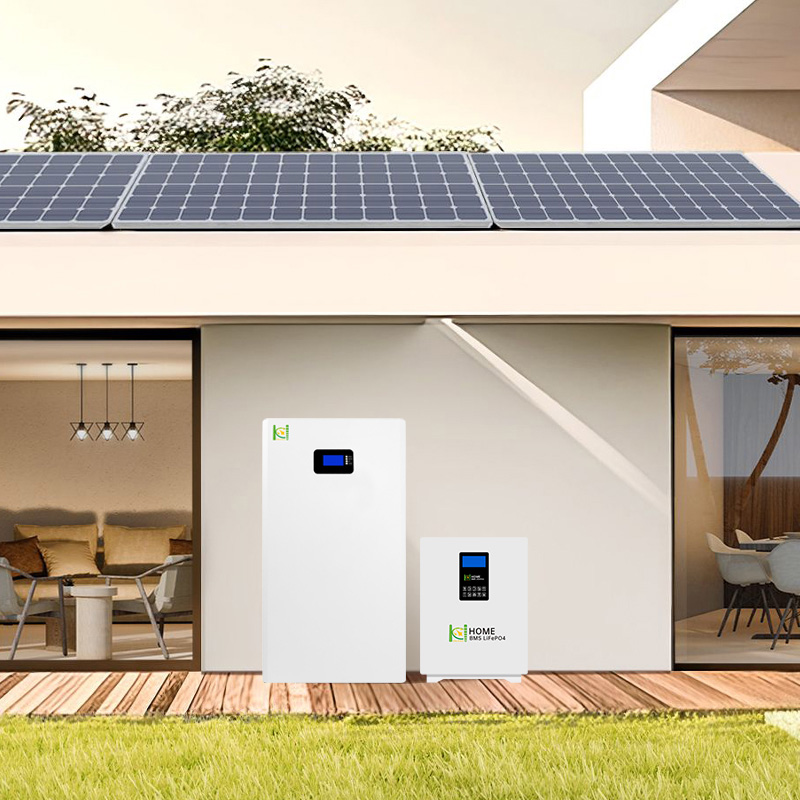

Suitable for wall or floor mounting for convenient setup.
Real-Time Monitoring
Monitor performance through a mobile app with Bluetooth
ELITEProduct specification
|
Model |
48V100Ah |
48V200Ah |
|
Size( L x W x H) |
460* 195*660mm |
460* 195*995mm |
|
Nominal Voltage/Capacity |
51 .2V100Ah |
51 .2V200Ah |
|
Energy |
5120Wh |
10240Wh |
|
Maximum Output Power(Instant) |
5120W |
10240W |
|
Maximum Output Power(Continue) |
4600W |
9200W |
|
Internal Resistance |
≤40mΩ@50% SOC |
≤35mΩ@50% SOC |
|
Self-Discharge |
<3% per month |
<3% per month |
|
Shell Material |
Ironclad |
Ironclad |
|
Waterproof Class |
IP55 |
IP55 |
|
Standard Charging Current |
20A |
40A |
|
Maximum Charging Current |
100A |
200A |
|
Charging Temperature |
0℃ ~45℃ |
0℃ ~45℃ |
|
Charging Voltage |
57 .6±0 .2V |
57 .6±0 .2V |
|
Storage Temperature |
~5℃ ~45℃ |
~5℃ ~45℃ |
|
Maximum Discharge Current |
200A |
200A |
|
Discharging Temperature |
-20℃ ~ 65℃ |
-20℃ ~ 65℃ |
|
Overcurrent Protection |
210A |
210A |
|
Protective Plate Specification |
100A |
200A |
|
Bluetooth Function |
Assorting |
Assorting |
|
RS485 Communication |
Support |
|
|
CAN Communication |
Support |
|
|
232 Communication |
Support |
|
|
Parallel Connection Mode |
Support |
|
|
Series Connection Mode |
No Serial Use |
|
|
Certificate |
UN3480 , Class9 , MSDS , RoHs |
|
