WALL-MOUNTED HOME ENERGY STORAGE 10.24KWH

Our Home Energy Storage products are widely used by installers, agents, distributors, factories, and traders.

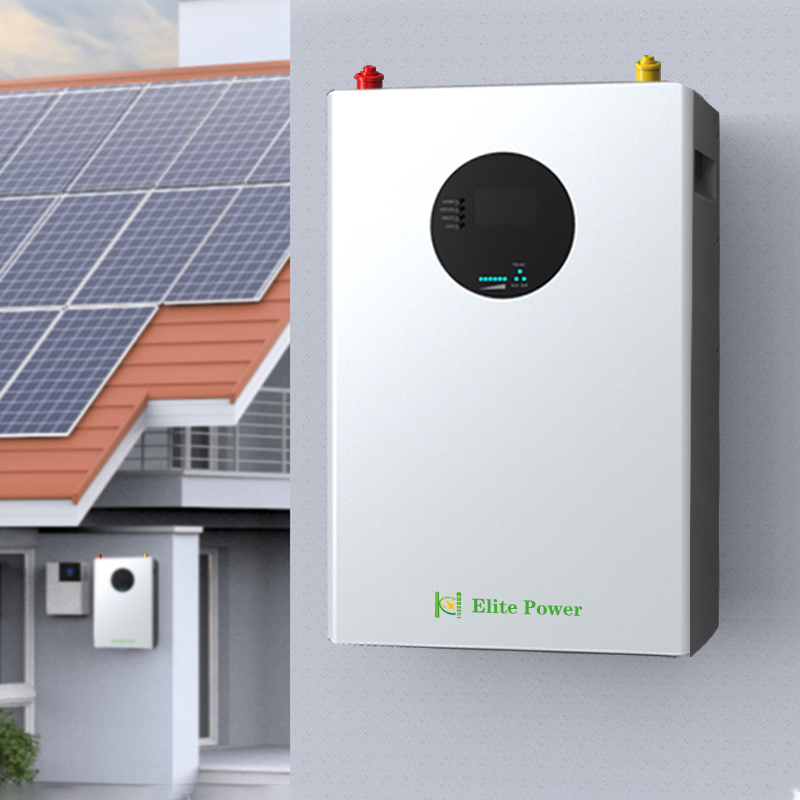

Elite Power Wall-mounted 10kWh Home Energy Storage System is a high-performance, compact battery storage solution designed for residential use. It allows homeowners to store excess solar energy or electricity from the grid for later use, helping to reduce electricity costs and increase energy efficiency. The system features a space-saving design and can be easily mounted on the wall, making it suitable for a variety of home environments.

product description

product details

ELITEProduct advantage

10KWH-Wall-Mounted-Energy-Storage-Battery-3

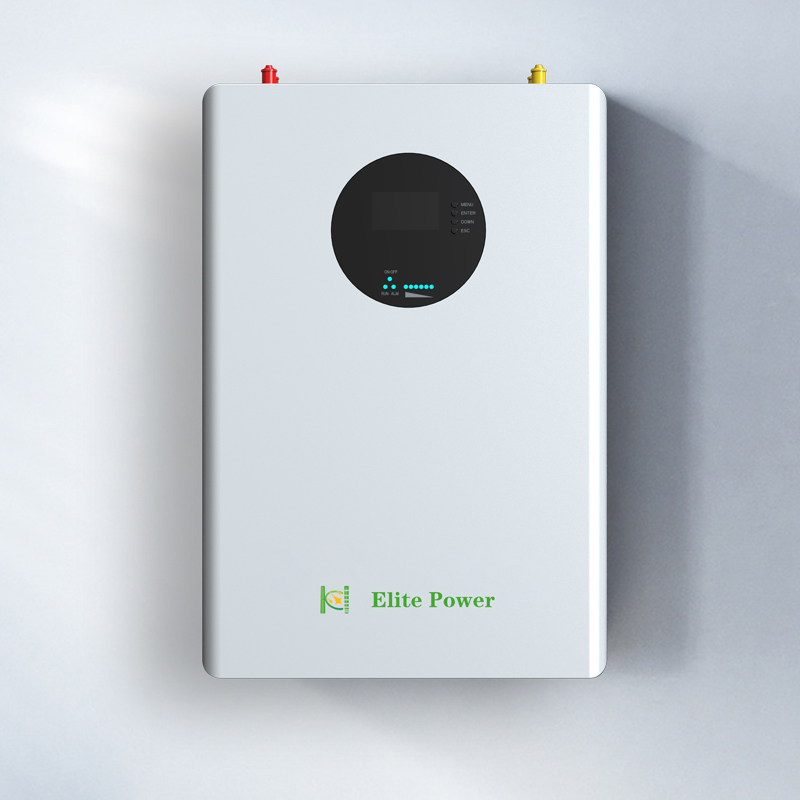

Elite Power 10.24kWh Li-ion battery includes only battery modules, which can storeand release electric energy according to the requirements of inverter management system.The input and output ports of battery are 48/51.2V DC.

10KWH-Wall-Mounted-Energy-Storage-Battery-1

Battery charging: the power control module is connected with the energy storage terminals (BAT +, bat -) of theinverter to charge the battery and store the excess photovoltaic energy in the battery under the control of the inverter.

10KWH-Wall-Mounted-Energy-Storage-Battery-2

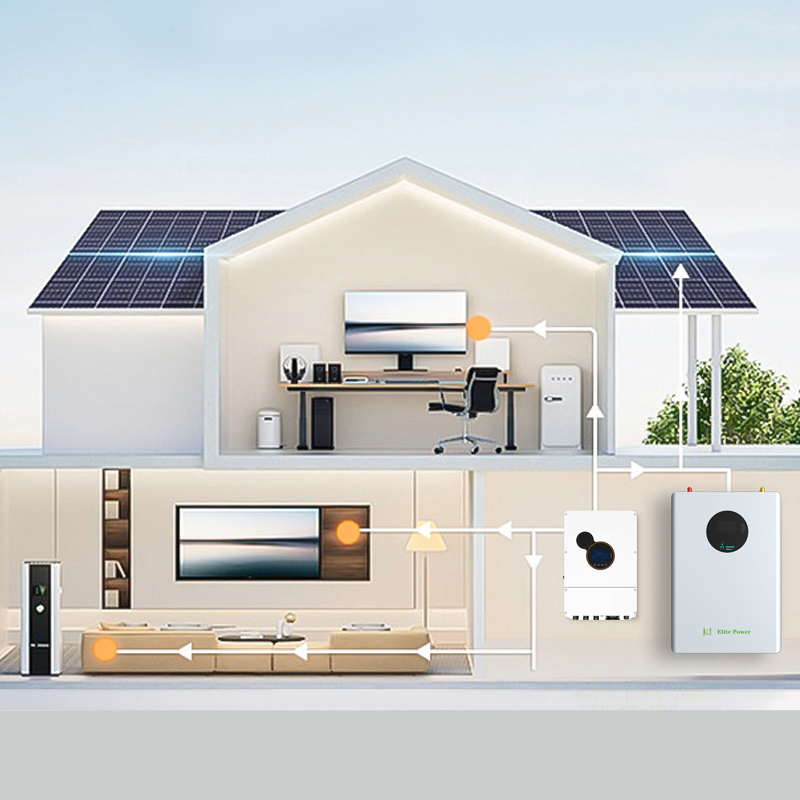

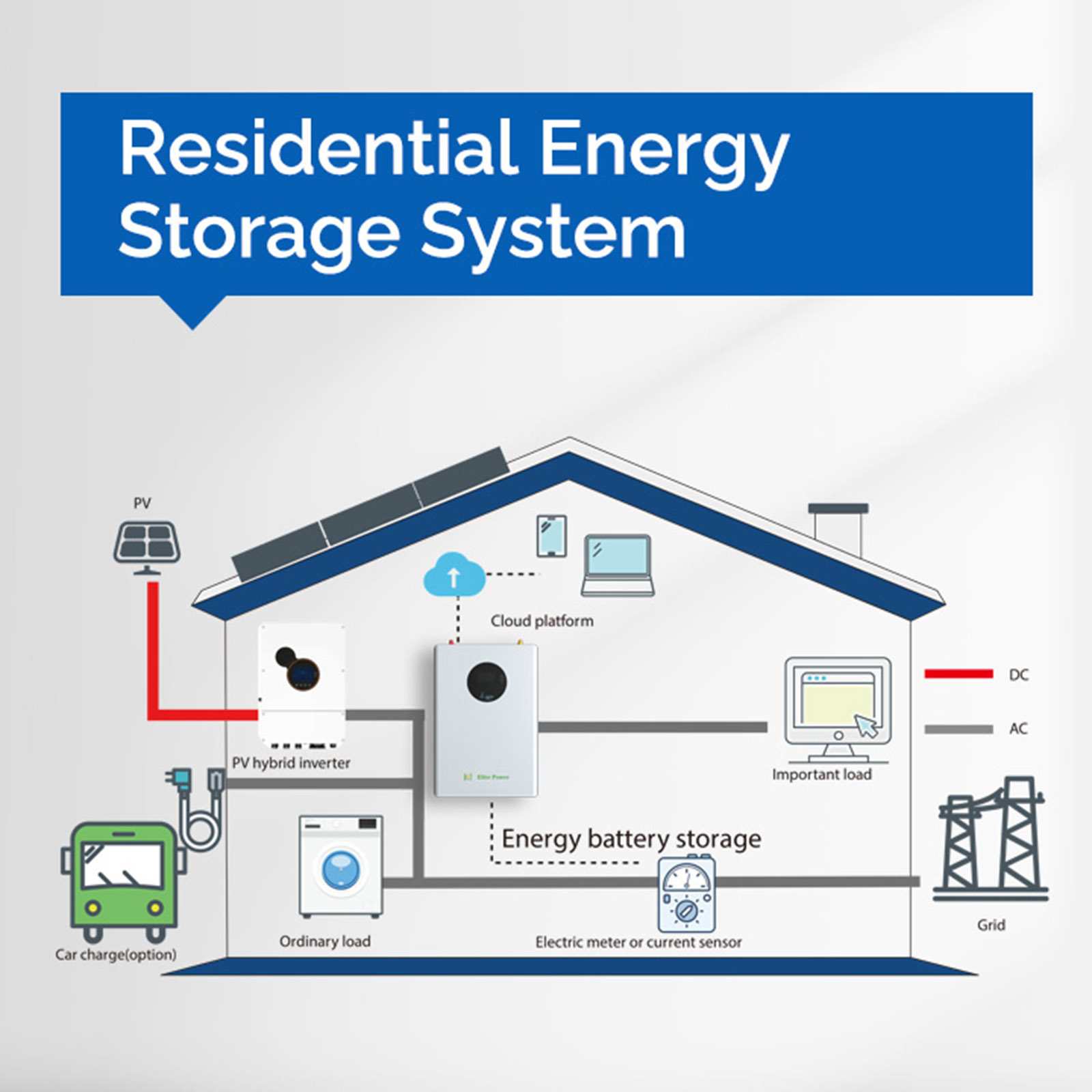

Battery discharge: when the photovoltaic energy is insufficient to supply power to the load, the system needs to control the battery to supply power to the load and out put the stored battery energy to the load through the inverter.

ELITEProduct specification

Electrical Characteristics
Rate Voltage	51 .2VDC
Rate Capacity	200Ah
Energy Storage	10 .24kWh
Cycle Life	>6000 cycles to 85% DOD
Months Self Discharge	≤2%
Eﬃciency of Charge	100% at 0 .2C
Eﬃciency of Discharge	96-99% at 1C
Standard Charge
Standard Charge Current	40
Charge Voltage	0 .2C to 54 .2V, then 58 .4V charge current to 0 .02C( DC/ DC)
Charge Mode	40A
Max .Charge Current	100A
Standard Discharge
Contiunous Current	100A
Discharge cut-oﬀ Voltage	44 .8VCD
Temperature
Charge Temperature	0℃ to 45℃ (32F to 113F)@60+25% Relative Humidity
Discharge Temperature	-20℃ to 60 ℃(-4F to 140F)@60+25% Relative Humidity
Storage Temperature	-20℃ to 60 ℃(-4F to 140F)@60+25% Relative Humidity
Mechanical
IP Class	IP60
Meteria	LiFePO4
Case Material	Metal
Case Type	Rack Wall Mount
Size	750485210(mm)
Weight	90KG
Terminal	M8
Protocol(optional)	CANBUS/ RS485/ RS232
SOC(optional)	LED/ LCD
The quality assurance period	60 months
