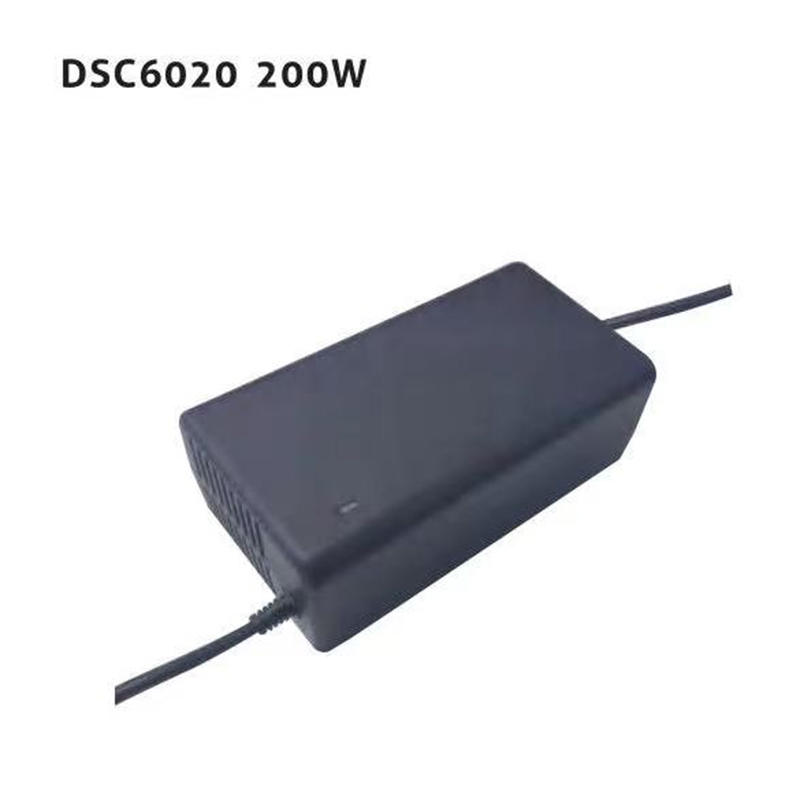

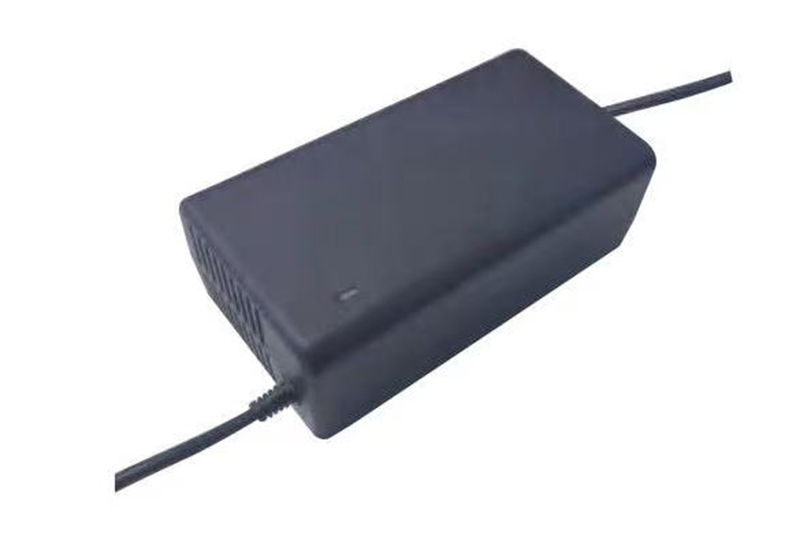

200W Series Desktop Battery Charger
Energy storage systemProduct specification
| OUTPUT | VoitagelDC) | 9V | 9.1-14V | 14.1-21V | 21.1-30V | 30.1-48V |
| Current(Max.) | 5A | 4.16A | 3.36A | 2.3A | 1.57A | |
| Power (Max.) | 45W | 50W | 50.4W | 50.4W | 50.4W | |
| Ripple&noise | ≤150mV | S200mV | ≤200mV | ≤300mV | 3300mV | |
| Voltage tolerance | ±5% | |||||
| standby power | <0.21W | |||||
| INPUT | voltage Range | 100-240VAC | ||||
| Frequency Range | 50-60Hz | |||||
| ENVROMENT | operation Temp. | 0℃to+40℃ | ||||
| Storage Temp. | -20℃to+80°℃ | |||||
| operation HUM | 10%-90% | |||||
| SAFETY | Safety Standards | 60601 CB.cULus.FCC,CE,TUV Mark,AU plug report |
||||
| Other | MTBF | >50,000 hours at 80%load and 25℃ | ||||
| Dimension | 84.5X52.0X35.0mmm | |||||
Energy storage systemProduct specifications
The range of input voltage is from 198Vac to 264Vac with a single phase. | |
Inrush Current (cold start) |
The inrush current will not exceed 160A at 220Vac input and Max load for a cold start at 25℃ |
Full Load Efficiency |
While input 230Vac, the full load efficiency is more than 85.00%. |
Capacitance Load |
While input 220Vac CV Mode and capacitance load is 470uF, the Charger can turn on normally and the constant current is in the rated range. |
Output Load Transient Response |
The output shall not exceed 10% of the nominal output voltage, load flunctuation、 from 20% to 80%, R/S、 0.5A/uS, frequency、 100Hz duration and 8mS at 80%. |
Over Current Point Limited |
：I ＞ 3.1A , The output shall hiccup when the over currents applied to the output rail, and shall be self-recovery when the fault condition is removed. |
Short Circuit Protection |
The input power shall decrease when the output rail short, the power supply shall no damage, and shall be self-recovery when the fault condition is removed. |
Over Voltage Protection |
The power supply shall protection when the output over voltage. |
Vibration |
10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth： 3.5mm) for 1Hour for each of the perpendicular axes X, Y, Z |
Burn-in |
The power supply shall be burn-in at least 4 Hours under normal input and 80% rated load at 40℃ ± 5℃ |
MTBF Qualification |
The MTBF shall be at least 50,000hours at 25°C, Full load and nominal input condition. |
AC pins corresponding to relative national standards. | |
Dielectric Strength(Hi-pot) |
Primary to Secondary： 4242VDC or 3000VAC/ 5mAMax / 60second(3 seconds for mass production) |
Leakage Current |
0.25mAmax. at 264Vac / 50Hz |
Insulation Resistance |
50MΩ min. at primary to secondary add 500Vdc test voltage |
PE bag, color bag, cardboard, paper case, etc. | |
