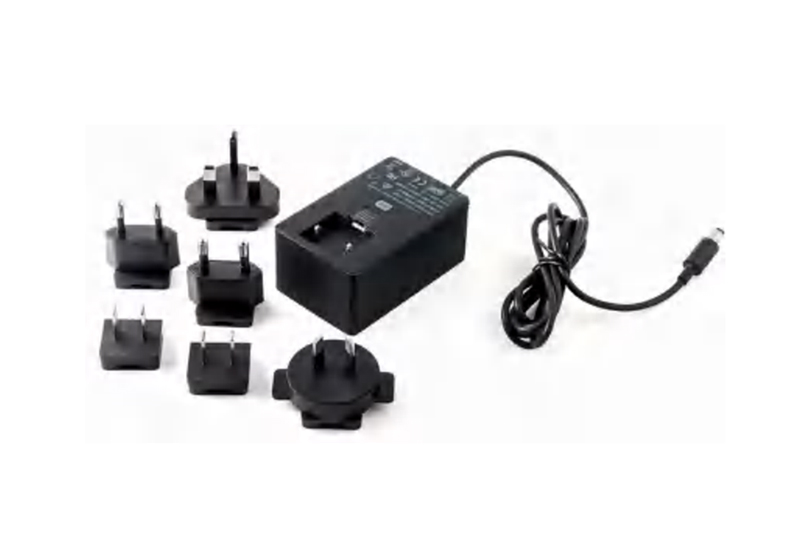

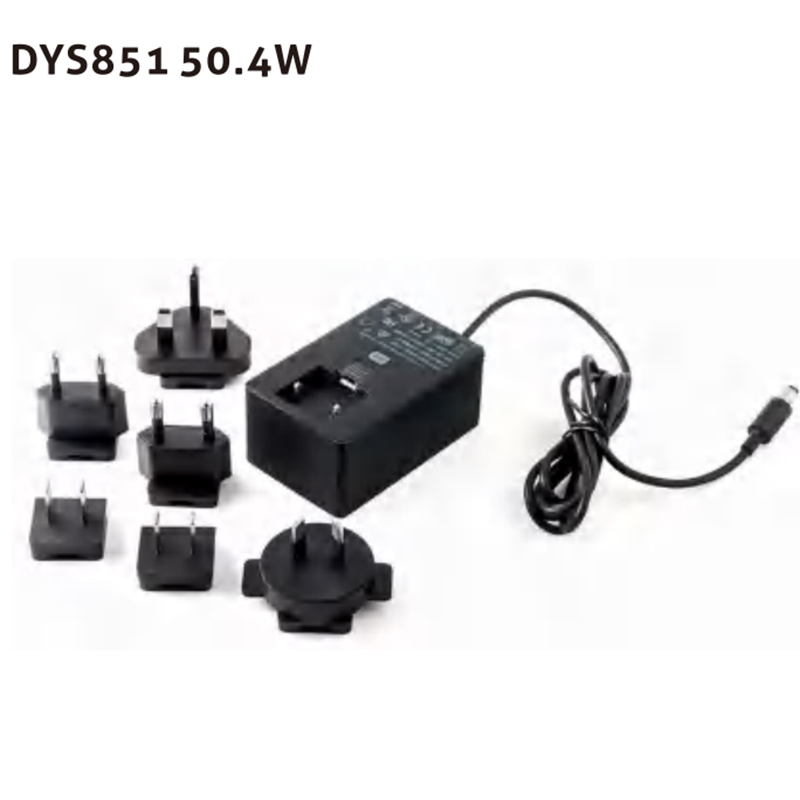

50.4W Series Medical Power Supplies Interchangeable plug type
Energy storage systemProduct specification
OUTPUT |
Voltage(DC) |
9V |
9.1-14V |
14.1-21V |
21.1-30V |
30.1-48V |
Current(Max.) |
5A |
4.16A |
3.36A |
2.3A |
1.57A |
|
Power (Max.) |
45W |
50W |
50.4W |
50.4W |
50.4W |
|
Ripple&noise |
≤150 mV |
≤200 mV |
≤200 mV |
≤300 mV |
≤300 mv |
|
voltage tolerance |
±5% |
|||||
Standby power |
<0.21W |
|||||
INPUT |
Voltage Range |
100-240VAC |
||||
Frequency Range |
50-60Hz |
|||||
ENVIROMENT |
operation Temp. |
0℃to+40℃ |
||||
Storage Temp. |
-20℃to+80℃ |
|||||
Operation HUM |
10%-90% |
|||||
SAFETY |
Safety Standards |
60601 |
||||
Other |
MTBF |
>50,000 hours at 80%load and 25℃ |
||||
Dimension |
84.5X52.0X35.0mmm |
|||||
Energy storage systemSpecification
☑ 1. Inrush Current (cold start): The inrush current will not exceed 80A at 100-240Vac input and Max load for a cold start at 25℃.
☑ 2. While input 115Vac and 230Vac, the average efficiency is more than 87.40%. The test point is at 25%, 50%, 75% and 100% of max load respectively.
☑ 3. While input 115Vac or 230Vac and the output is no load,the input power loss must be less than 0.1W.
☑ 4. While input 100~240Vac and capacitance load is 470uF, the adapter can turn on normally.
and the output is in the rated range.
☑ 5. Output Load Transient Response: the output shall not exceed 10% of the nominal output voltage, load flunctuation: from 20% to 80%, R/S: 0.5A/uS, frequency: 100Hz duration and 8mS at 80%.
☑ 6. Over Current Protection: I 3.6A＜I＜8A , The output shall hiccup when the over currents applied to the output rail, and shall be self-recovery when the fault condition is removed.
☑ 7. Short Circuit Protection: The input power shall decrease when the output rail short, the power supply shall no damage, and shall be self-recovery when the fault condition is removed.
☑ 8. Over Voltage Protection: The power supply shall protection when the output over voltage.
☑ 9. Vibration test: 10 to 300Hz sweep at a constant acceleration of 1.0G(Breadth: 3.5mm) for 1Hour for each of the perpendicular axes X, Y, Z.
☑ 10. Drop in test: Height: 1m; the product should be fell off on the plank with the thickness of at least 53mm, and the plank should be put on the cement ground or on the ground without flexibility. Random surface in all 3 times.
☑ 11. EMI: FCC Part18 class B, EN55032.
☑ 12. EMS: EN55035.
☑ 13. Safety Accord with: ANSI/AAMI ES60601-1, CSA C22.2 NO. 60601-1, IEC60601-1, EN60601-1, AS/NZS 60601.1.
Quality Assurance.
☑ We do turn ON/Off test when rated load and input 100V/240V.
☑ All products (100% products) are tested by our equipment.
The test items of our power supply functional test system are as follows:
DC output performance test, DC output voltage test, Current ripple test, efficiency testing, Inrush current test, Enter RMS current test, Input peak current test, Input power test, Current harmonic violation test, Input power factor test, Short circuit protection test, low voltage protection test, Over current protection test, Over voltage protection test, Over load protection test, Over temperature protection test, and so on.
☑ All products (100%) are rated load burn-in test at 4 Hours under normal input and 80% rated load at 40℃5℃.
☑ We do the Appearance inspection.
