24W series and 50.4W series Medical Power Supplies Fixed wall-plug-in type
Medical Power Supplies

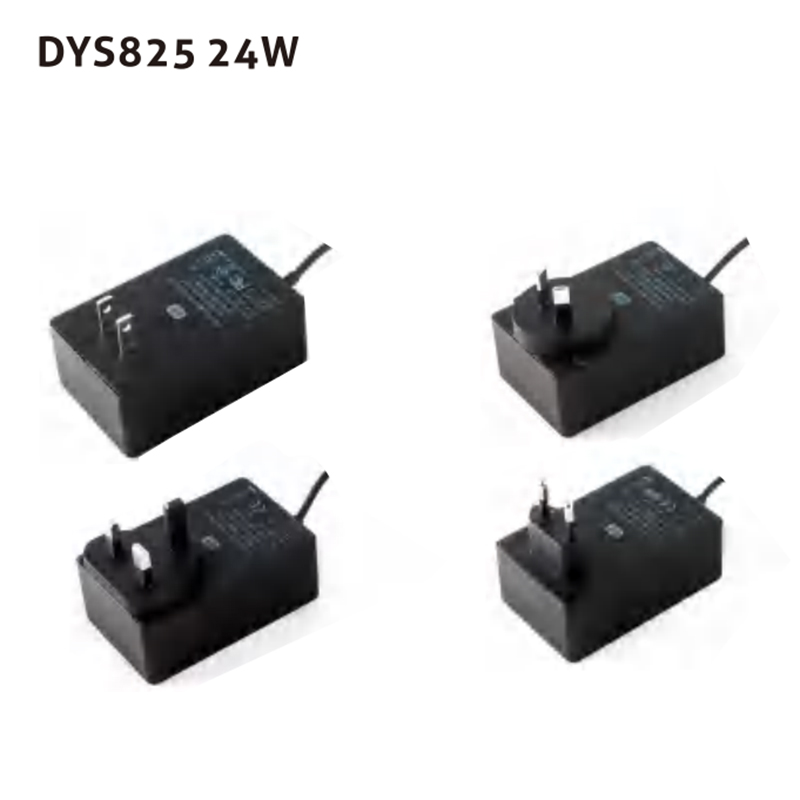

DYS825 24W-1.jpg

24W series and 50.4W series Medical Power Supplies Fixed wall-plug-in type

We focus on Medical Power Supplies. We could make l Power Supplies Fixed wall-plug-in type models, such as 24W series, 50.4W series, and so on.

    Contact us
    product description

    Energy storage systemProduct specification

    OUTPUT

    Voltage(DC)

    4-7.5V

    7.6-13V

    13.1-19V

    19.1-30V

    30.1-48V

    Current (Max.)

    4A

    2.66A

    1.8A

    1.25A

      0.7A

    Power(Max.)

    21.2W

    24W

    24W

    24W

    24W

    Ripple&noise

    ≤150 mv

    ≤150 mV

    ≤200mV

    ≤200 mv

    ≤300 mv

    Voltage tolerance

    ±5%

    Standby power

    <0.1W

    INPUT

    Voltage Range

    100-240VAC

    Frequency

    50-60Hz

    ENVIROMENT

    operation Temp

    0℃to+40℃

    Storage Temp.

    -20℃to+80℃

    Operation HUM

    10%-90%

    SAFETY

    Safety
    Standards

    60601
    CB,cULus,FCC,CE,TUV Mark,AU plug report

    Other

    MTBF

    >50,000 hours at 80%load and 25℃

    Dimension

    US/EU:76.8X48.0X31.0mm
    UK:76.8X50.0X37.0mm
    AU:76.8X54.5X39.0mm

    ELITEWhy select us?

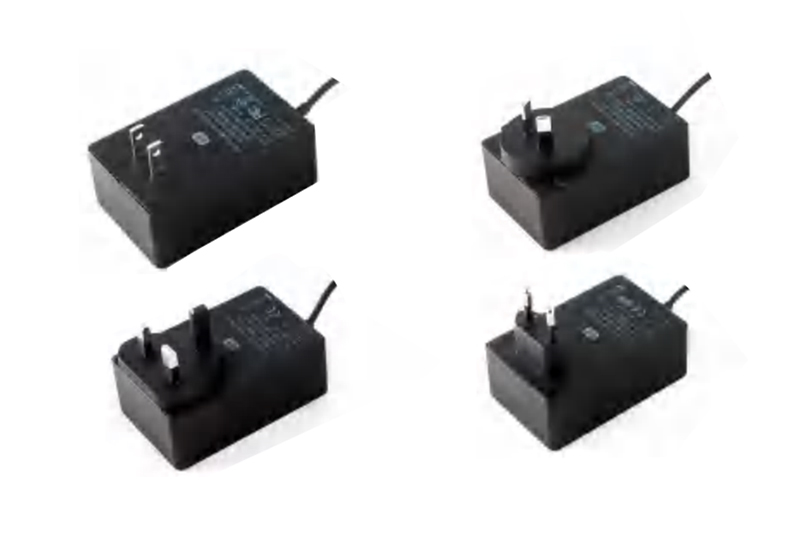

    DYS825 24W-2

    ☑ Our price will be reasonable. We offer OEM and ODM service.
    ☑ We could provide packing by according to customers’ requirement.
    ☑  Quality first. We focus on our products’ quality.
    ☑ We operate with honesty and transparency in all our business dealings.
