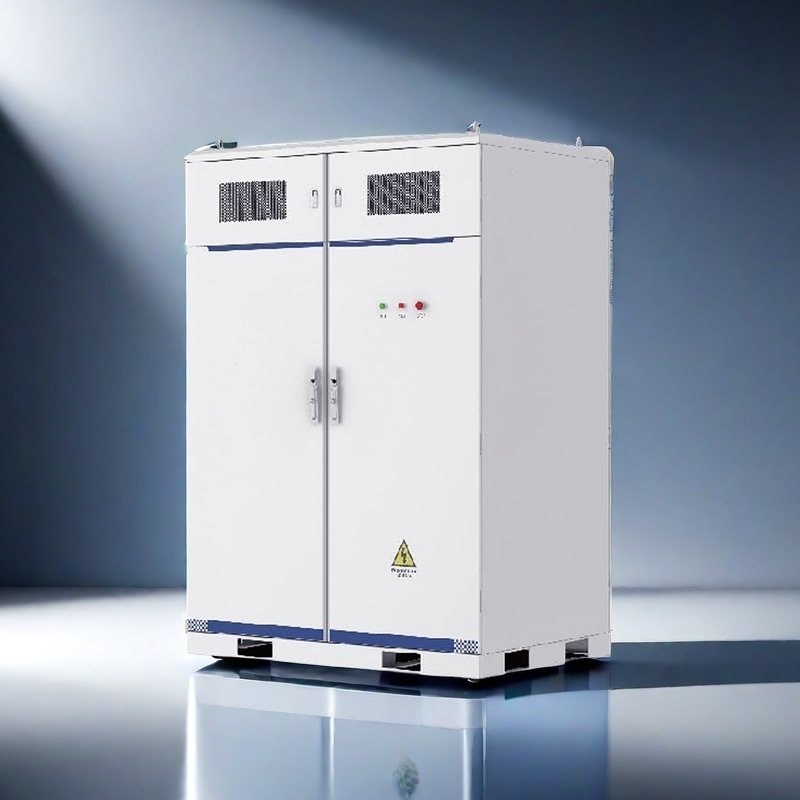

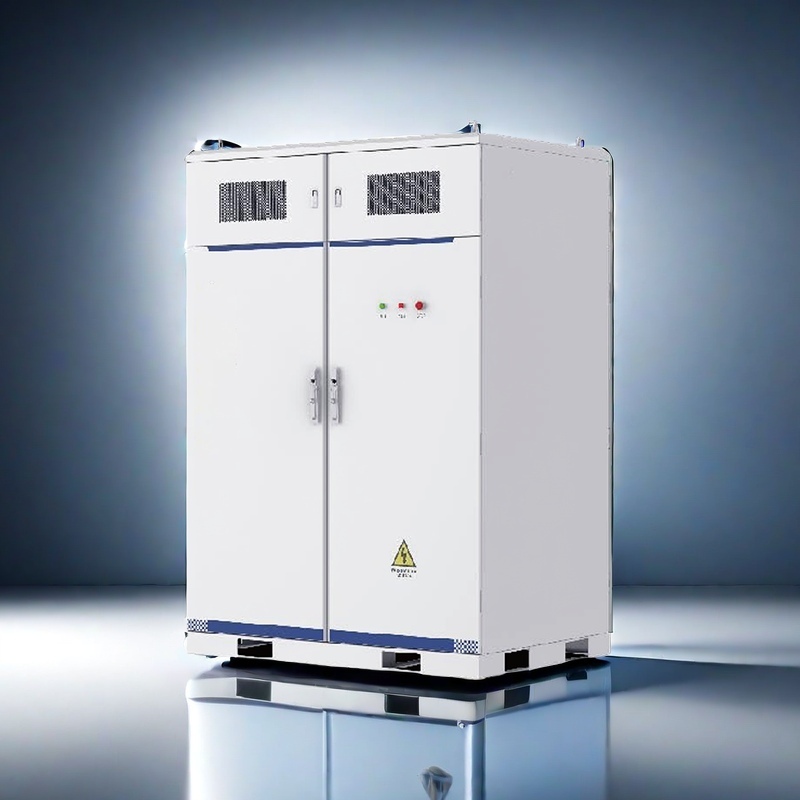

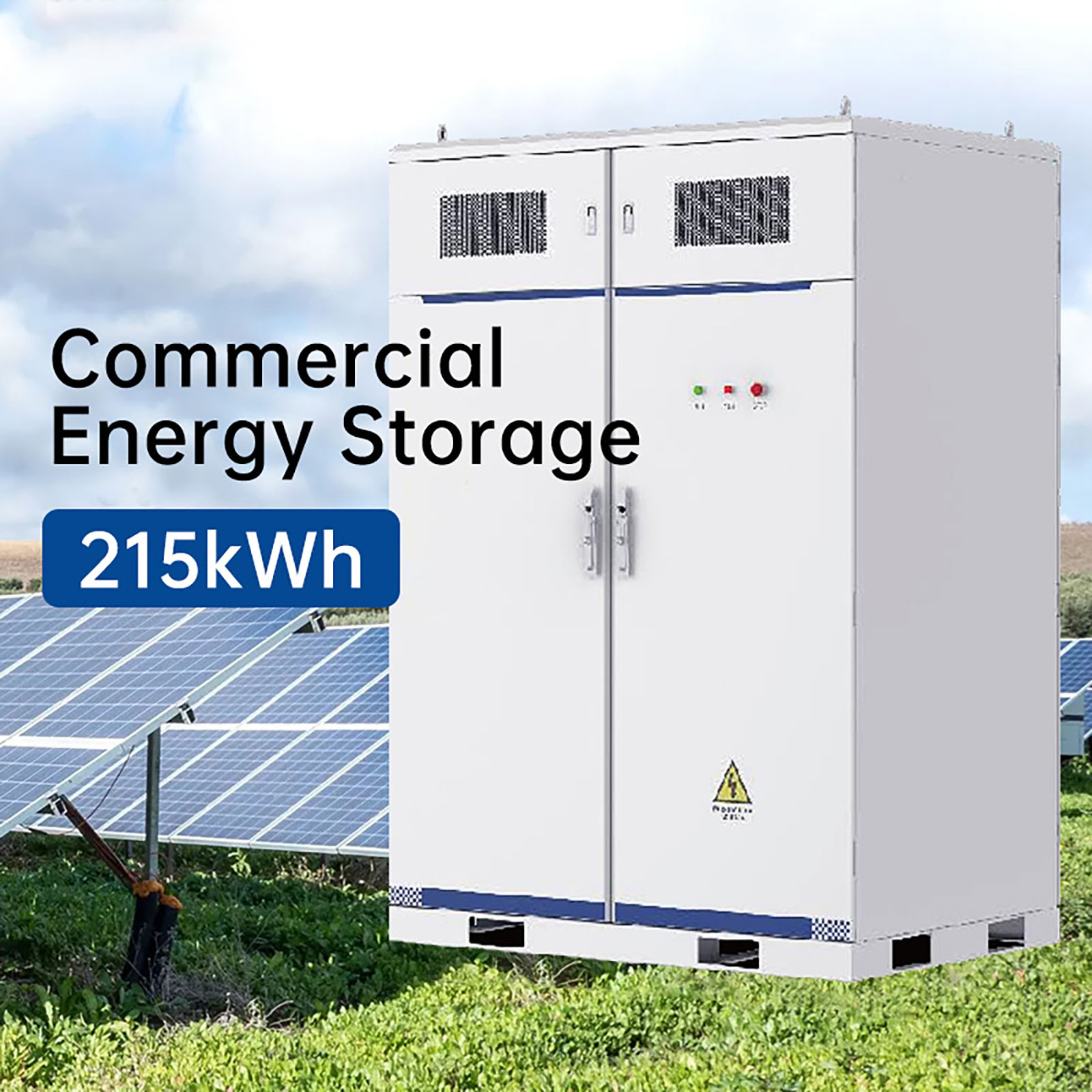

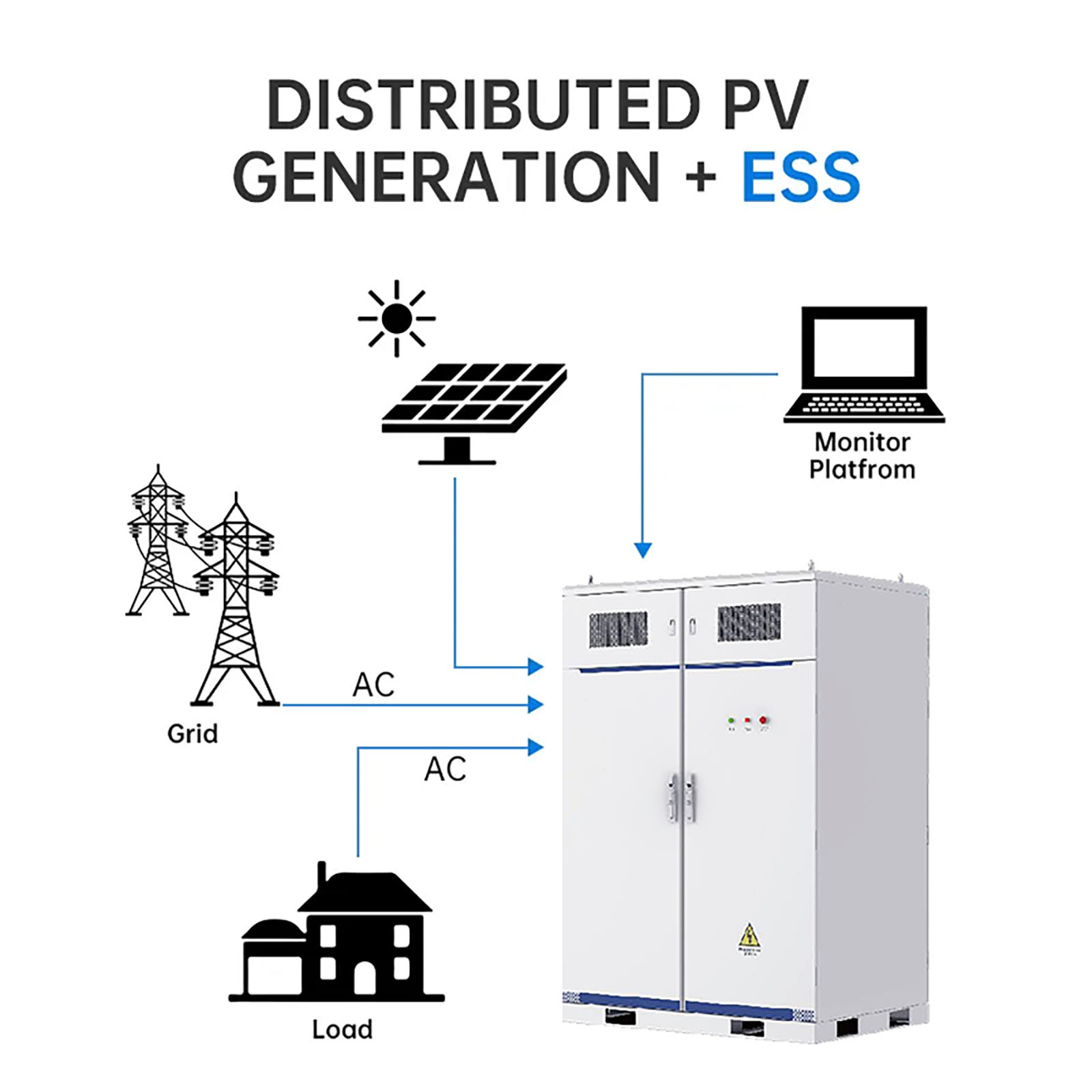

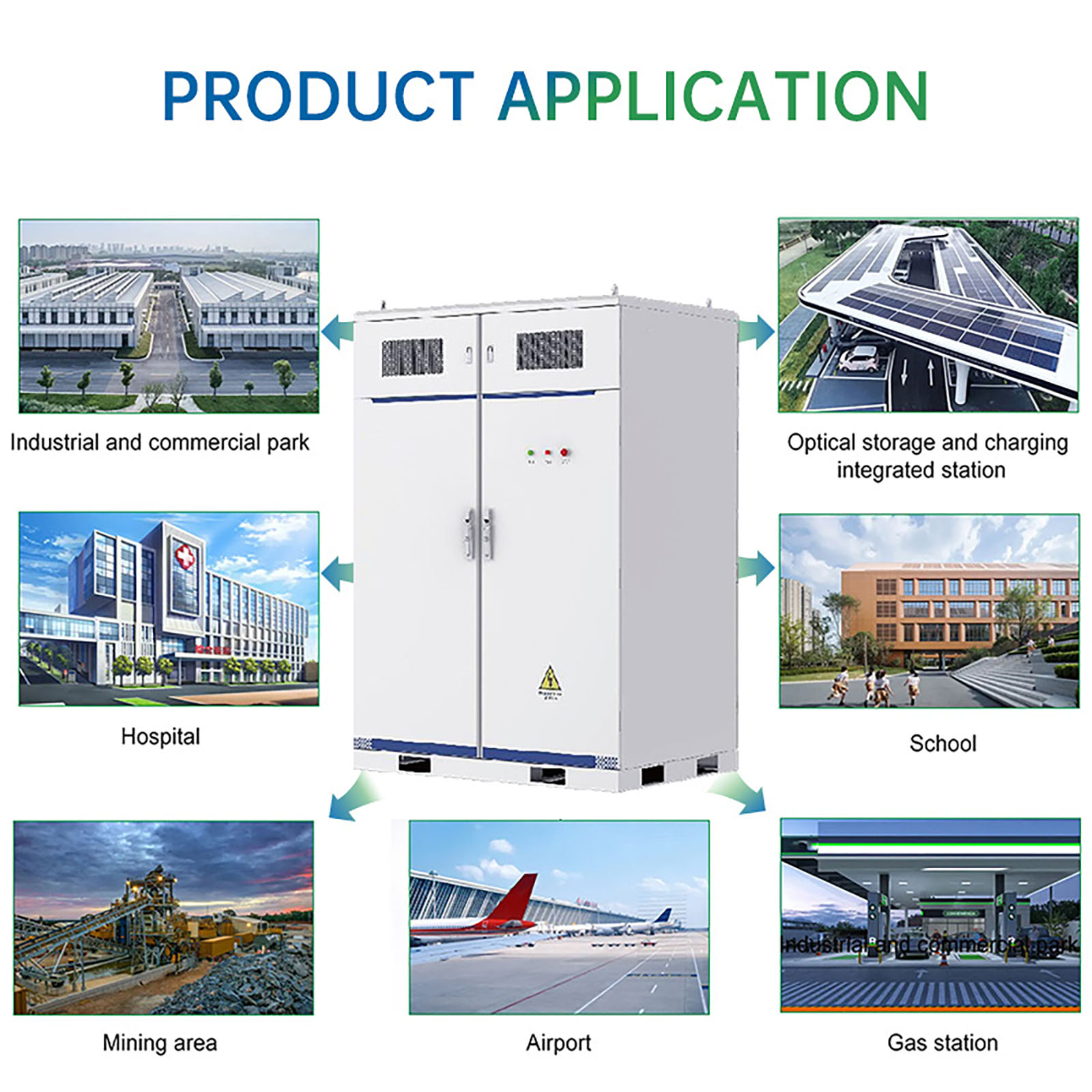

COMMERCIAL ENERGY STORAGE CABINETS (215KWH)
Equipped with perfect protection function, equipped with fire protection, access control, heat management and other systems;
Three-level BMS management from unit to system to ensure the safe and reliable operation of the system;
Support wired or wireless 4G communication to realize remote monitoring.
Energy storage systemProduct specification
|
Project |
Specification |
Remark |
||
|
Basic parameters |
Configuration |
1P 240S |
||
|
Number of electrical boxes |
5 |
|||
|
Battery Type |
Lithium Iron Phosphate |
|||
|
Cycle life |
≥6000 @25℃1C |
|||
|
Bidirectional inverter |
200kW |
|||
|
Wiring Mode |
Quick Insert |
|||
|
Electrical performance parameters |
Charging Current |
Rated |
140A |
|
|
maximum |
280A |
|||
|
Discharge current |
Rated |
140A |
||
|
maximum |
280A |
|||
|
Nominal power |
215KWh |
|||
|
Voltage range |
672~864VDC |
|||
|
Rated voltage |
768VDC |
3.2V |
||
|
Auxiliary power supply(liquid cold machine Group) |
Voltage range |
220V AC(LN) |
||
|
power |
CoolingCapacity≥5 KW@W18/L35 |
50/60HZ |
||
|
Heater≥2000W |
||||
|
Impact power |
3.5KW |
25℃ |
||
|
Auxiliary power supply(BMS） |
Voltage range |
22V~26V(DC) |
||
|
Power consumption in operation state |
600W |
|||
|
Basic parameters of energy storage cabinet |
Dimensions (H*W*D) |
W1500xH 2180xD1390mm |
Subject to actual situation |
|
|
color |
Light Gray(RAL9003/RAL7021) |
To be determined |
||
|
weight |
3500Kg(estimated) |
Subject to actual situation |
||
|
Corrosion resistance grade |
C5 |
|||
|
Earthquake resistance |
9Earthquake intensity |
(2016 California Building code SDC D) |
||
|
IP grade |
IP55 |
|||
|
Power connection method |
AC side: screw connection + cold-pressed cable terminalDC side: Quick plug |
|||
|
Ground resistance |
System grounding resistance ≤ 1ΩAnd meet local scope requirements |
Reserved grounding bolt |
||
|
Communication |
Modbus TCP |
|||
|
Cooling method |
Liquid Cooling |
|||
|
Coolant |
50% ethylene glycol + water |
|||
|
DC voltage range |
600~950V |
|||
|
Rated output power |
200kW |
pairPCSParallel |
||
|
Rated output voltage |
380V |
|||
|
Output voltage range |
380V±10% |
|||
|
Rated output frequency |
50Hz |
|||
|
Output frequency range |
50Hz±2Hz |
|||
|
AC side cycle efficiency |
86.30% |
Calculate the system efficiency of 200kW/232kWh with auxiliary power consumption of 2.5kW: 1. Charging rectification: 1*98%*(1-2.5%) =0.9555 2. Battery efficiency: 95% 3. Discharging inversion: 1*97.5%*(1-2.5%) =0.9506 Theoretical value of charging and discharging efficiency: 0.9555*0.95*0.9506 =0.8628 8 |
||
|
Grid type |
3L+N+PE |
|||
|
Performance parameters |
Relative humidity |
0%-95%, no condensation |
||
|
Operating temperature |
-20℃ -+50℃ |
|||
|
Storage temperature |
-40℃~75℃ |
|||
|
Operating altitude |
≤2000m Normal operation, 2000m~4000m derating operation |
|||
|
Corrosion resistance grade |
C4-Default,C5-Optional |
|||
|
EMC |
CLASS-A |
|||
|
Protection level |
IP55 |
|||
