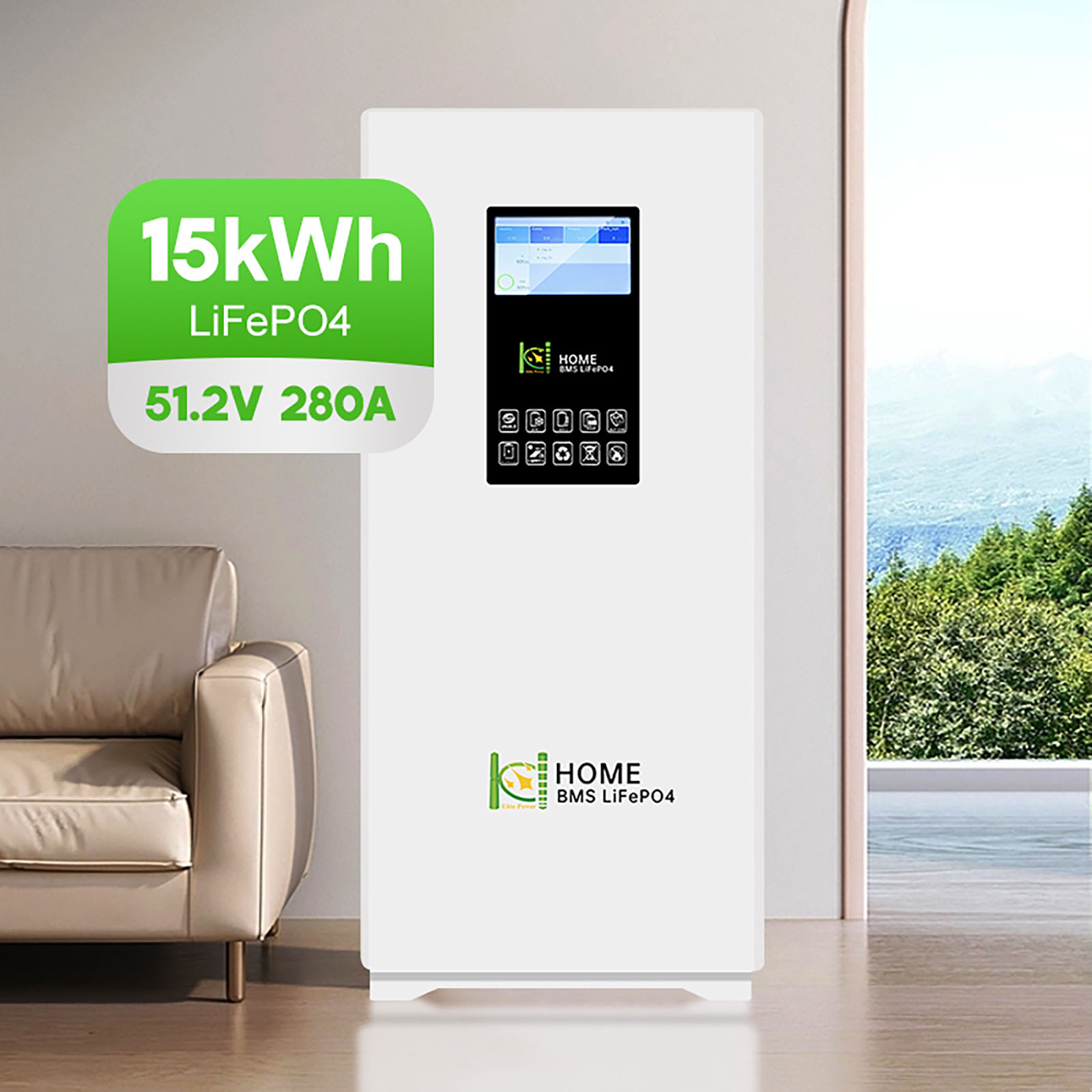

HOME ENERGY STORAGE 15KWH
High-Performance True A+ Cells
16 cells with secure fastening connections for optimal performance.
Long Lifespan
Over 15 years of typical use with a 5-year warranty.
Temperature Protection
Equipped with 5 temperature sensors to safeguard against both low and high temperatures.
Superior Cycle Life
Cells maintain 80% capacity after 3500 cycles at 100% DOD @ 1C rate. At 80% DOD @ 0.5C rate, they last over 7000 cycles.
Intelligent BMS
Automated, maintenance-free operation with a built-in Battery Management System.
Flame-Retardant Plastic Holders
16 durable cell holders ensure stable operation in all conditions.
Pre-Charge Circui
Protects the BMS from damage during initial charging.
User-Serviceable Design
Detachable and replaceable parts, including cover, BMS, cells, and holders, for easy servicing.

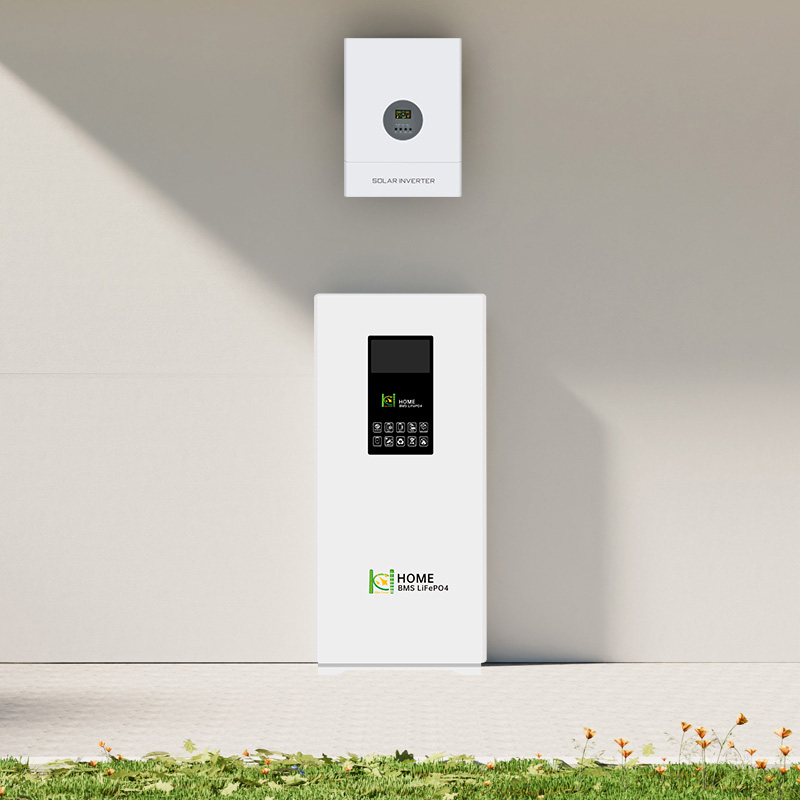

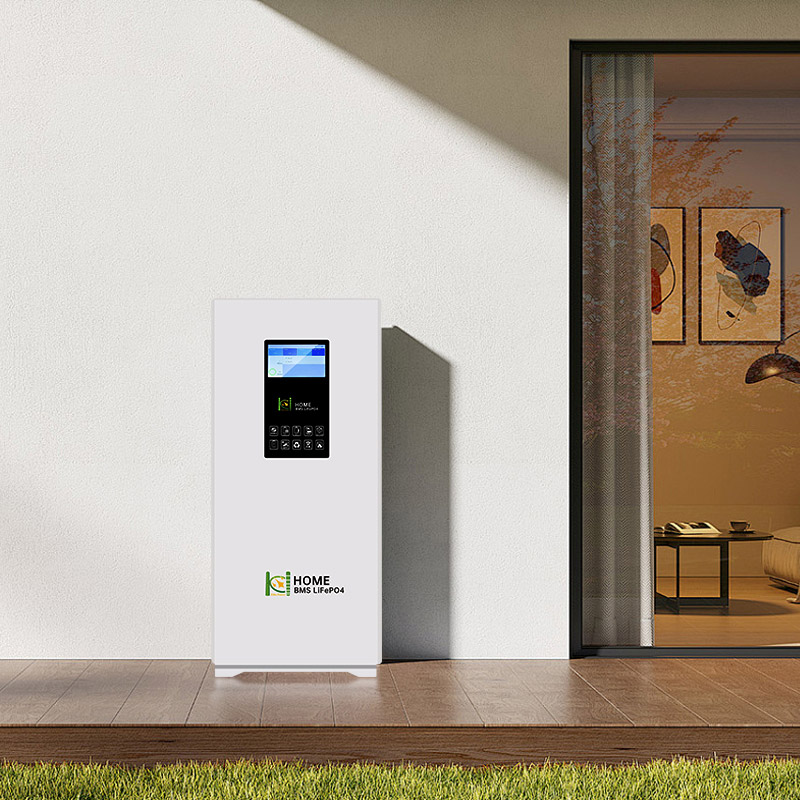

Flexible Installation
Can be mounted on a wall (Power Wall) or placed on the ground (Cabinet) for quick, versatile setup.
Wide Compatibility
Multiple communication protocols (RS485 & CAN Bus) ensure compatibility with most inverters on the market.
ELITEProduct specification
|
Battery cell |
specification Model |
280Ah |
|
capacity |
280Ah |
|
|
Nominal voltage |
3. 2V |
|
|
Internal resistance |
s0. 2mΩ |
|
|
Combination mode |
16S1 P |
|
|
Grouping standard |
Tolerance <1% |
|
|
single section internal resistance range<0.2mQ |
||
|
charge retention capacity>90% |
||
|
parameter |
Nominal voltage(v) |
51.2 |
|
Nominal capacity (Ah) |
280 |
|
|
Minimum capacity (Ah) |
280 |
|
|
charging cut-off voltage (v) |
58. 4 |
|
|
Discharge cut-of voltage (v) |
40 |
|
|
USB output voltage (v) |
No |
|
|
Maximum continuous Discharge current(A) |
200 |
|
|
Display screen |
yes |
|
|
Bluetooth function |
yes |
|
|
standard charging current(A) |
50 |
|
|
suitable charging Temperature |
0'C~45'C |
|
|
suitable Discharge Temperature |
-20'C ~65'C |
|
|
Battery size |
460*280*9753mm |
|
|
Battery weight |
125kg |
|
|
storage Temperature Range |
-20C ~45C |
|
|
storage Humidity(RH) |
5%~95%(Non-condensing) |
|
|
Management system |
single over voltage protection value |
3.65V |
|
over voltage Release value |
3.5V |
|
|
single under voltage protection value |
2.5V |
|
|
under voltage Release value |
3.0V |
|
|
Overcurrent Protection Value |
210A |
