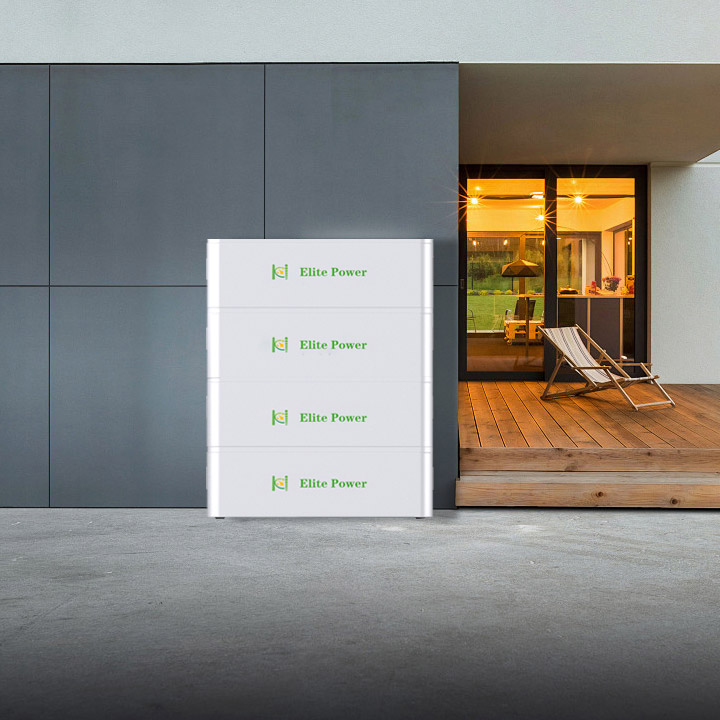

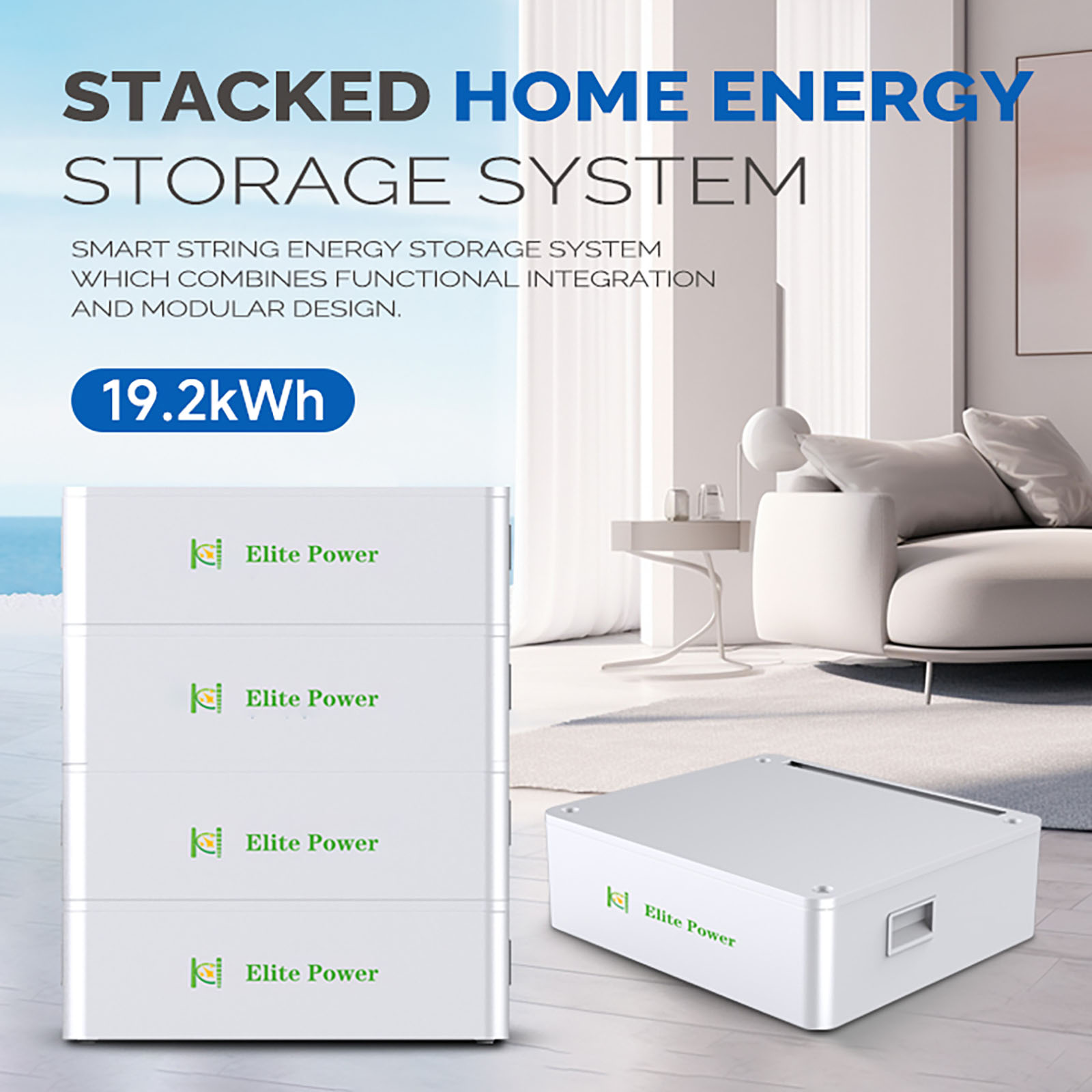

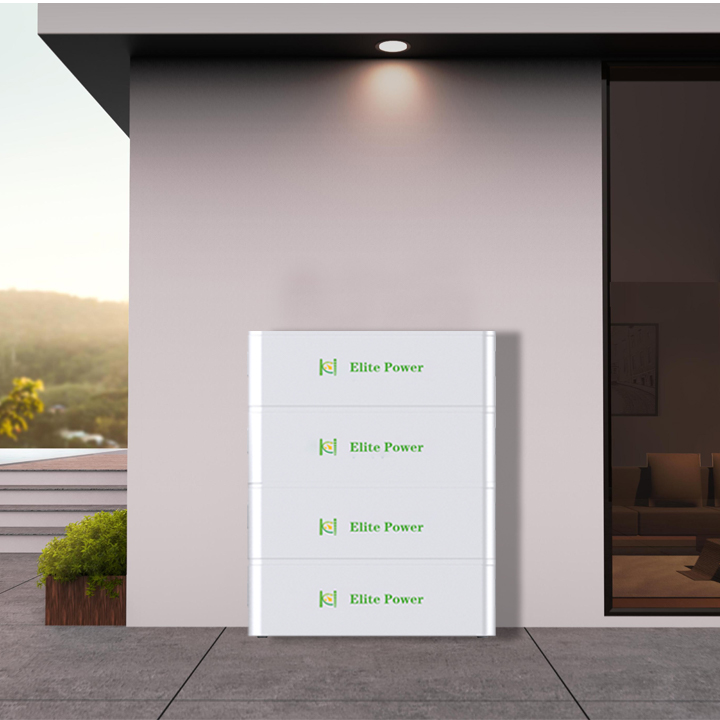

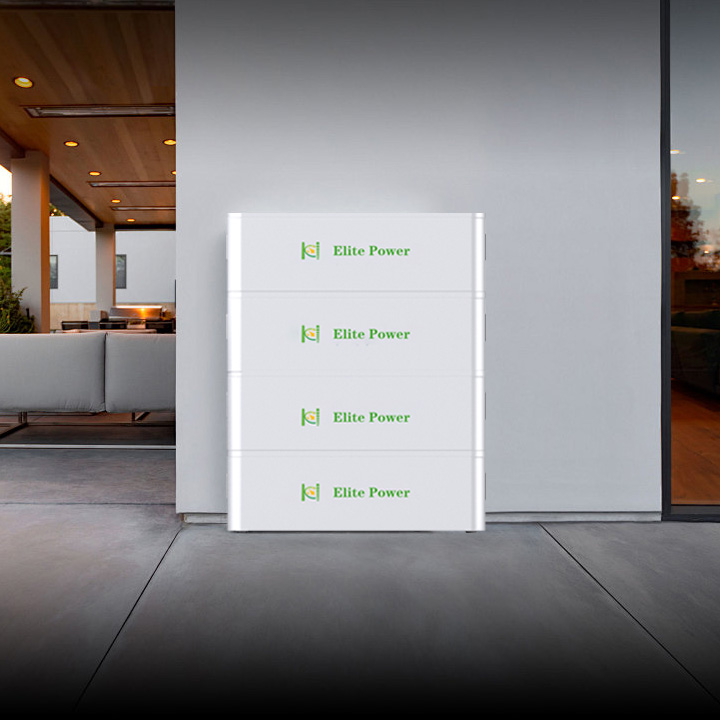

US STANDARD STACKABLE HOME ENERGY STORAGE 19.2KWH
Optimal Capacity
19.2kWh storage capacity, ideal for daily home energy use without exceeding regulatory limits.

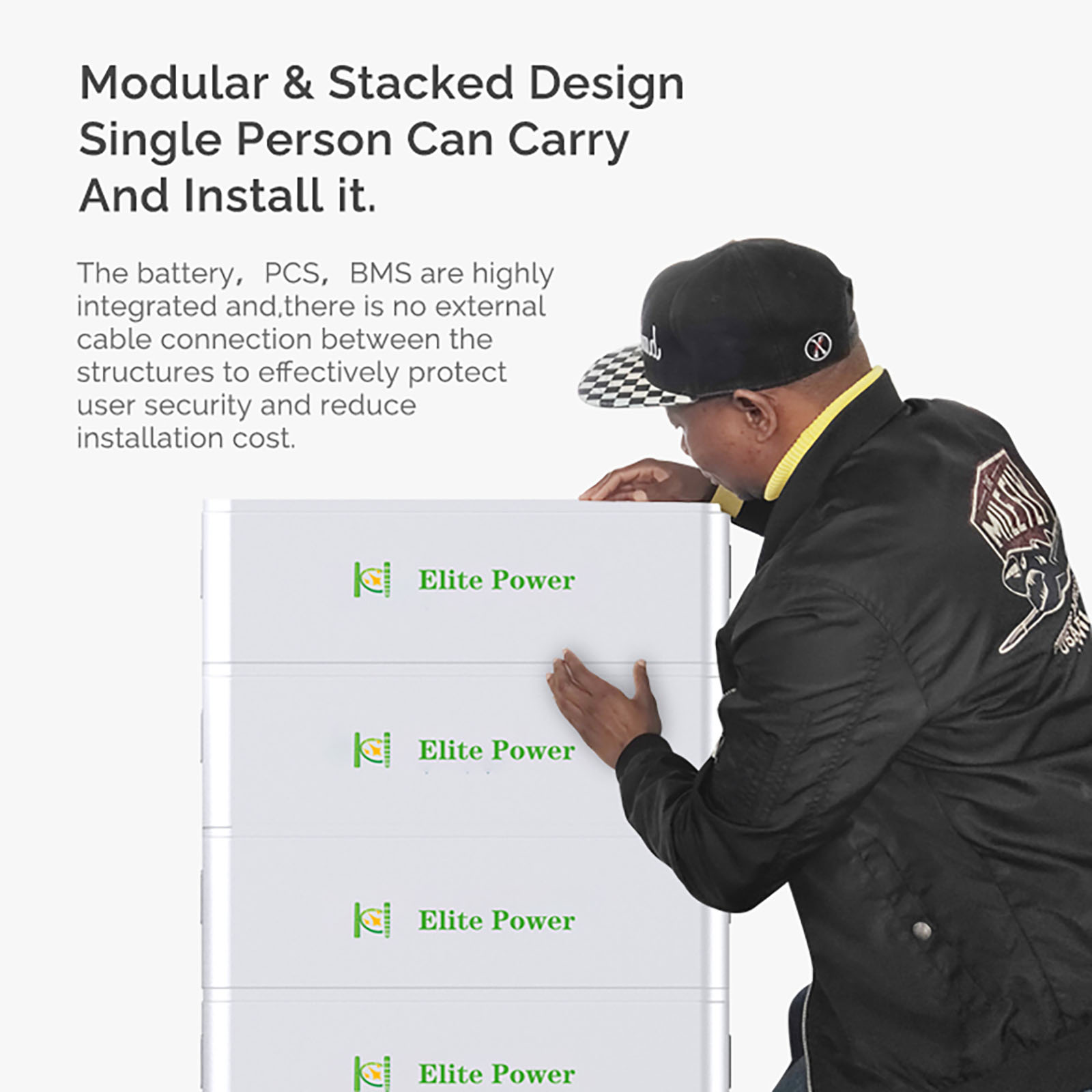

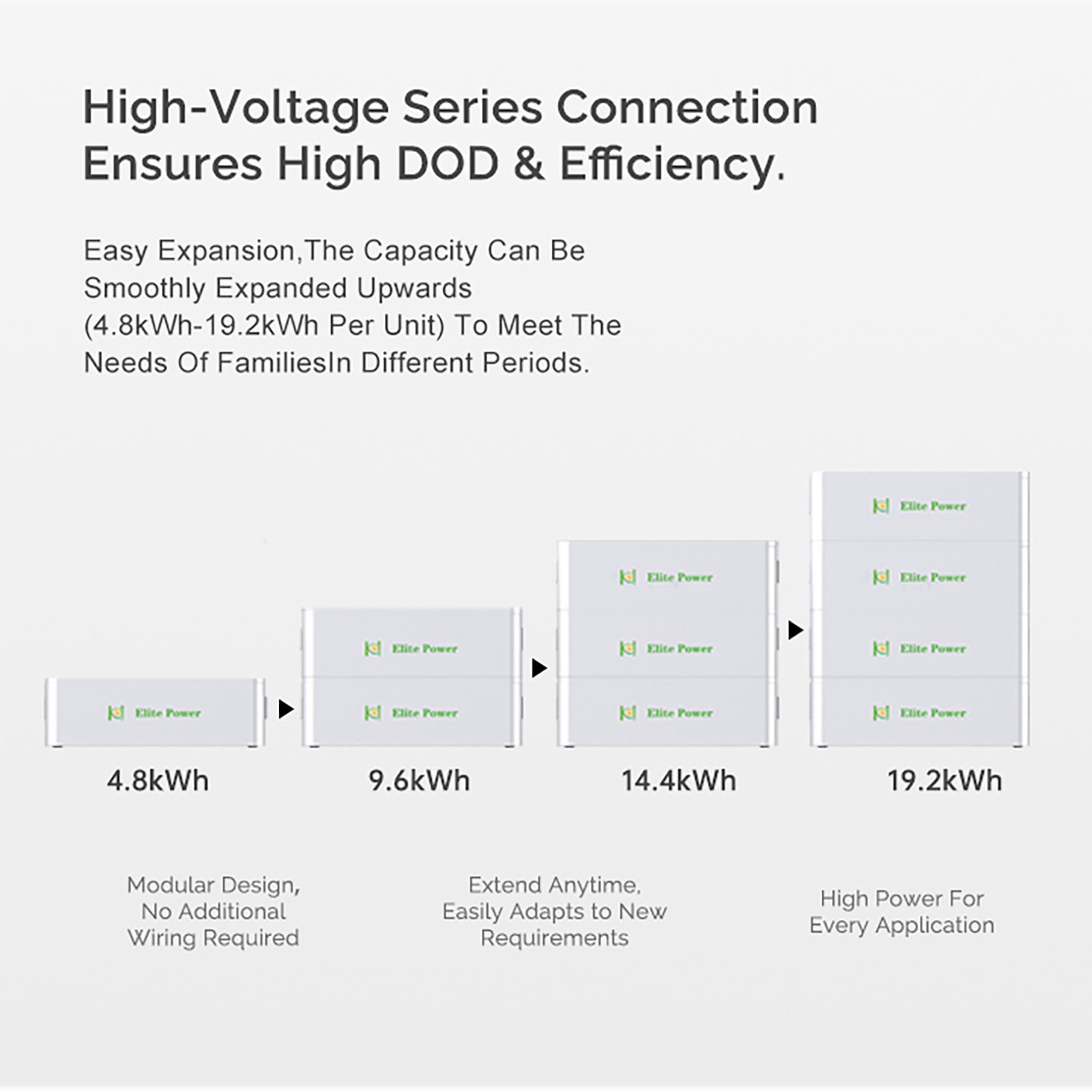

Stackable & Modular Design
Flexible and space-saving, allowing you to stack multiple units to scale up your storage capacity as needed.
US Regulatory Compliance
Fully compliant with UL 9540 safety standards, ensuring peace of mind and regulatory adherence.
ETL Certified
ETL listed for safety, ensuring that the system meets rigorous North American and international safety standards.
Durability & Longevity
Built to last with superior battery technology, offering long-term performance and reliability.
Smart Energy Management
Efficiently store excess solar power for later use, reducing reliance on the grid and lowering energy bills.
Easy Integration
Seamlessly integrates with your existing solar setup or energy system for a hassle-free installation process.
Ideal for
Homes with solar energy systems
Off-grid applications
Backup power in case of outages
Energy self-sufficiency

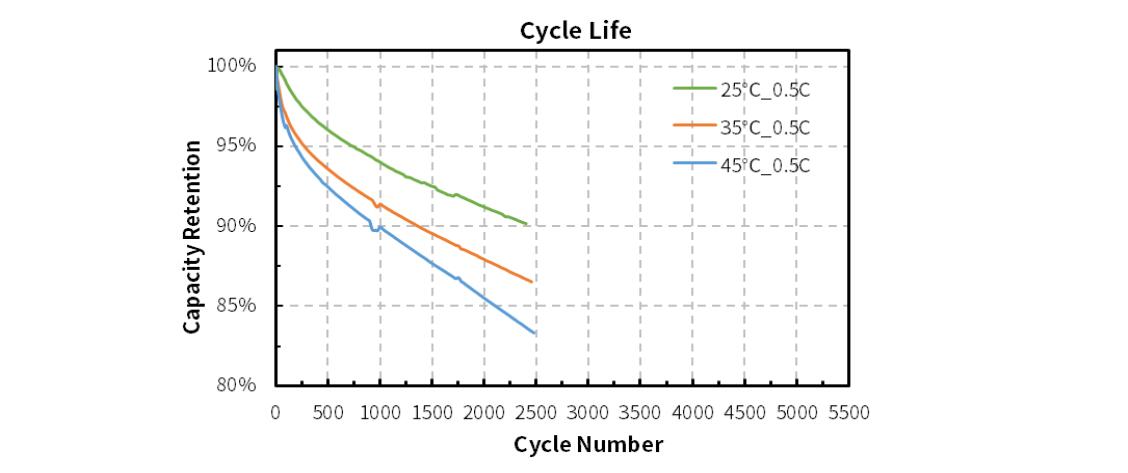

Cycles of the cell
The discharge curve of the cell at different magnification and temperature
ELITEProduct specification
|
Mode |
4.8KW |
9.6KW |
14.4KW |
19.2KW |
|
Main Parameter |
||||
|
Rated capacity |
4.8 |
9.6 |
14.4 |
19.2 |
|
Deep of Discharge |
95% |
95% |
95% |
95% |
|
Nominal capacity |
100Ah |
200Ah |
300Ah |
400Ah |
|
Battery Type |
LFP (LiFePO4) |
|||
|
Combination method |
1M/15S1P |
2M/15S1P |
3M/15S1P |
4M/15S1P |
|
Nominal Voltage(V) |
48 |
|||
|
Capacity(Wh) |
4800 |
9600 |
14400 |
19200 |
|
Charging mode |
CC/CV |
|||
|
Cycle life (weeks) |
6000 /times |
6000 /times |
6000 /times |
6000 /times |
|
Communication mode |
CAN/RS485/RS232 |
|||
|
Weight(kg) |
49.14 |
98.28 |
147.42 |
196.56 |
|
Dimensions (length × width × height) |
610*485*196mm |
610×485 ×350mm |
610×485 ×588mm |
610× 185 ×784mm |
|
Functional characteristic |
||||
|
Static voltage sampling accuracy of cell at room temperature |
±5mV |
±5mV |
±5mV |
±5mV |
|
Current sampling accuracy at room temperature |
≤±0.5%@FS |
≤±0.5%@FS |
≤±0.5%@FS |
≤±0.5%@FS |
|
Temperature sampling accuracy at normal temperature |
±1℃ |
±1℃ |
±1℃ |
±1℃ |
|
Short-circuit protection |
Y |
|||
|
Heating |
N |
|||
|
Charge balancing function |
Y |
|||
|
Cell capacity estimation function |
Y |
|||
|
Set battery string full charge capacity, current capacity, and designed capacity |
Y |
|||
|
LCD status display function |
Y |
|||
|
Host computer software control function |
The host computer software can easily set protection parameters such as overcharge, over-discharge, charge-discharge over-current, over-temperature, and low temperature, as well as parameters such as capacity, sleep, equalization, and storage. |
|||
|
Communication port |
CAN/RS485/RS232 |
|||
|
Sleep and wake up |
Has a variety of sleep and wake up mode |
|||
|
Warranty |
60 months |
|||
